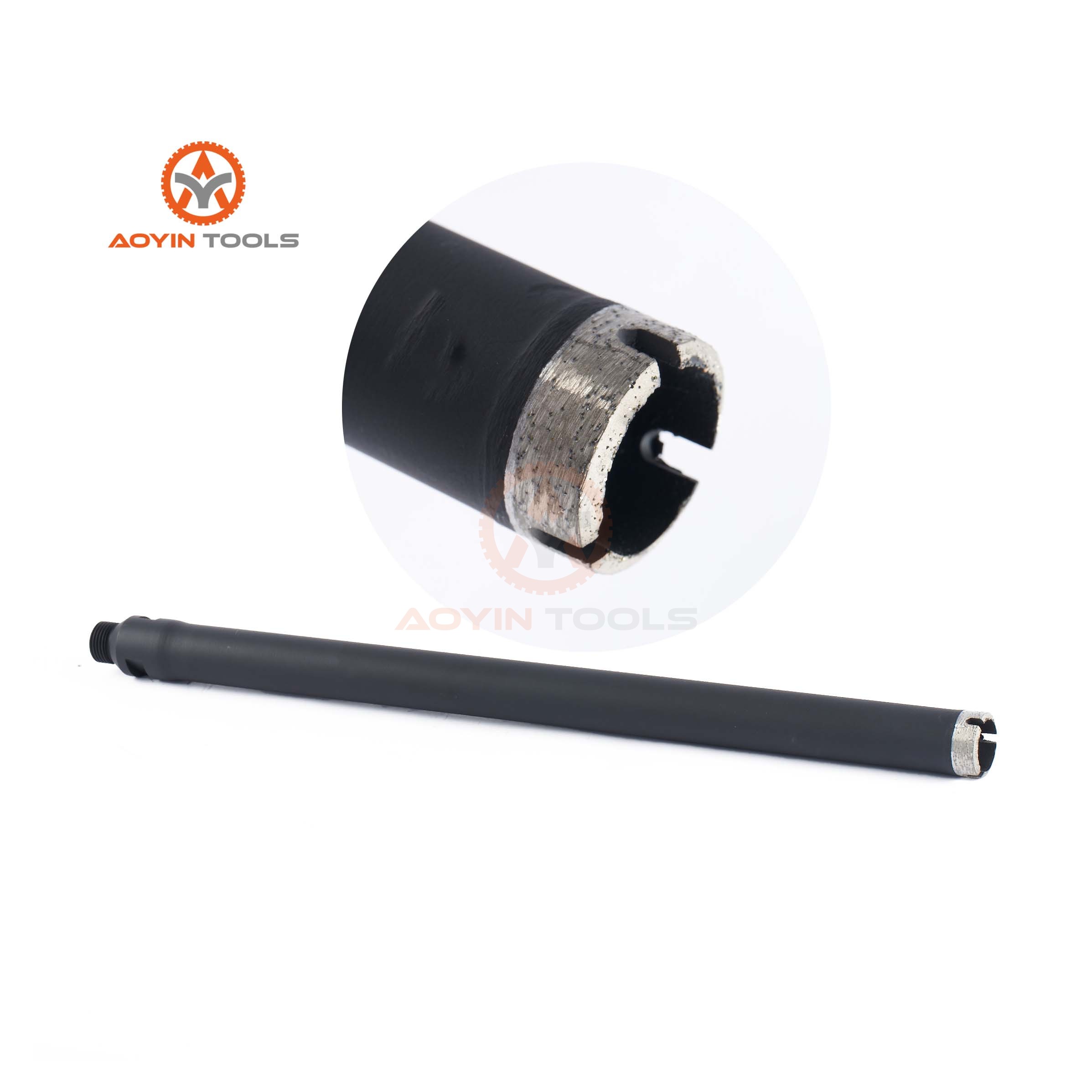

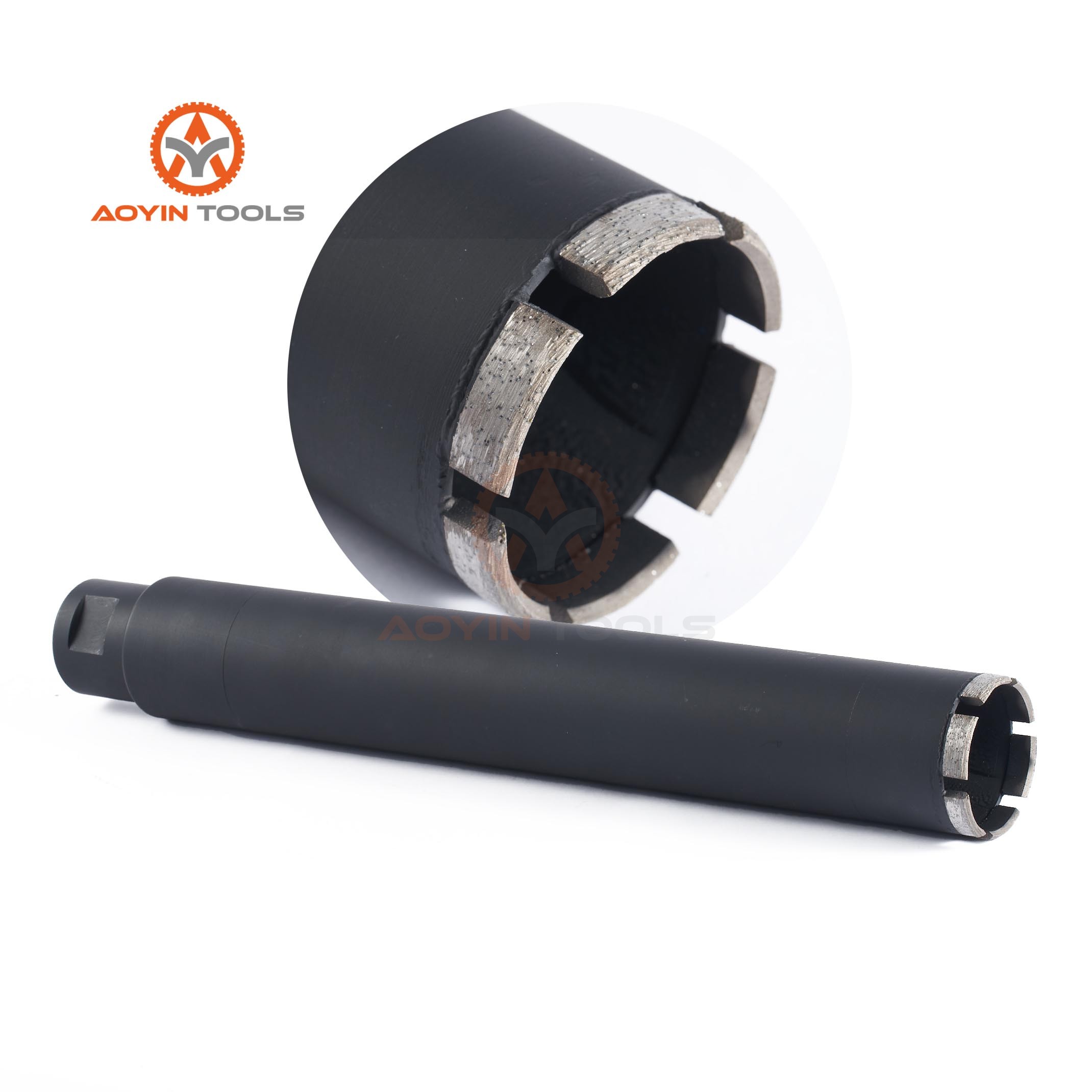

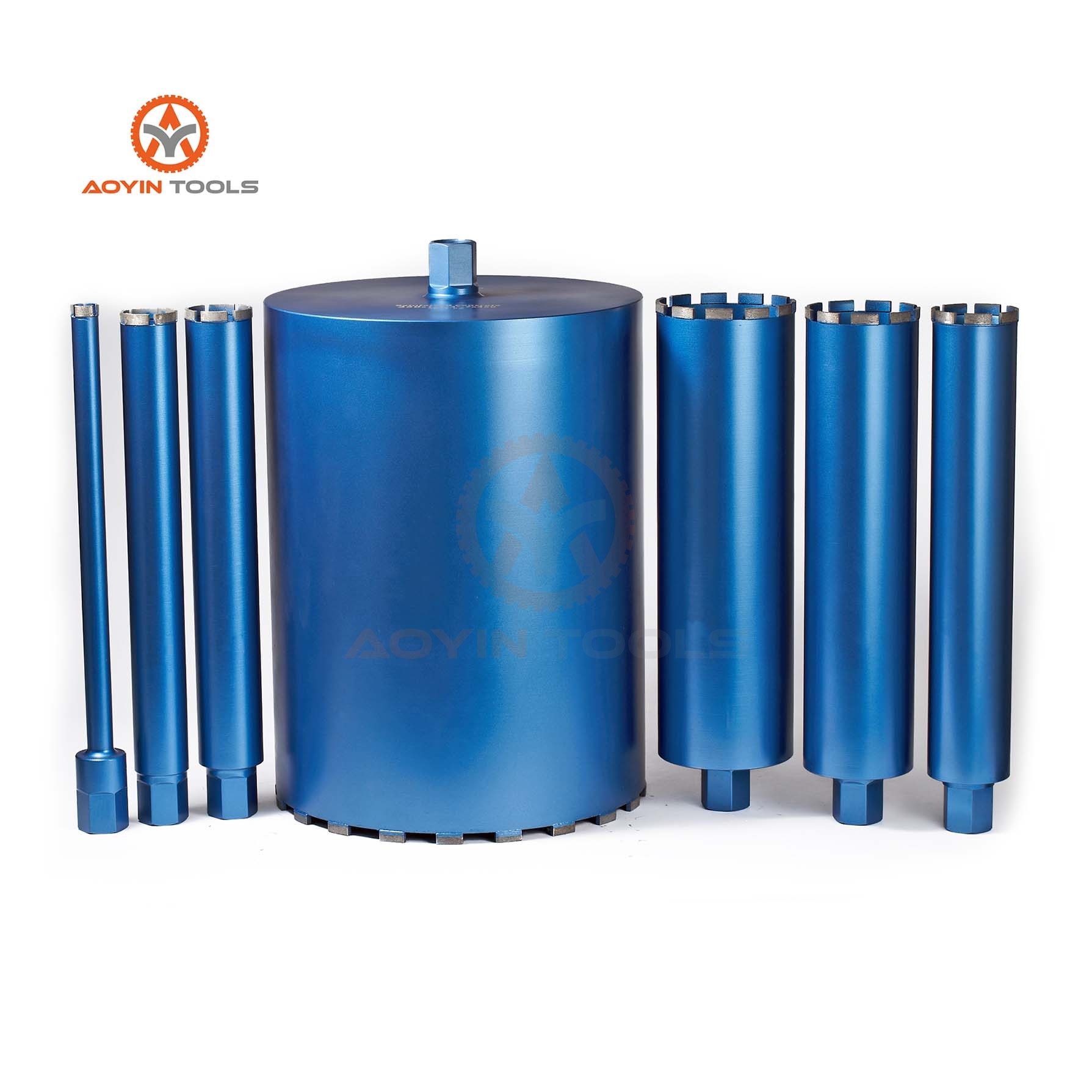

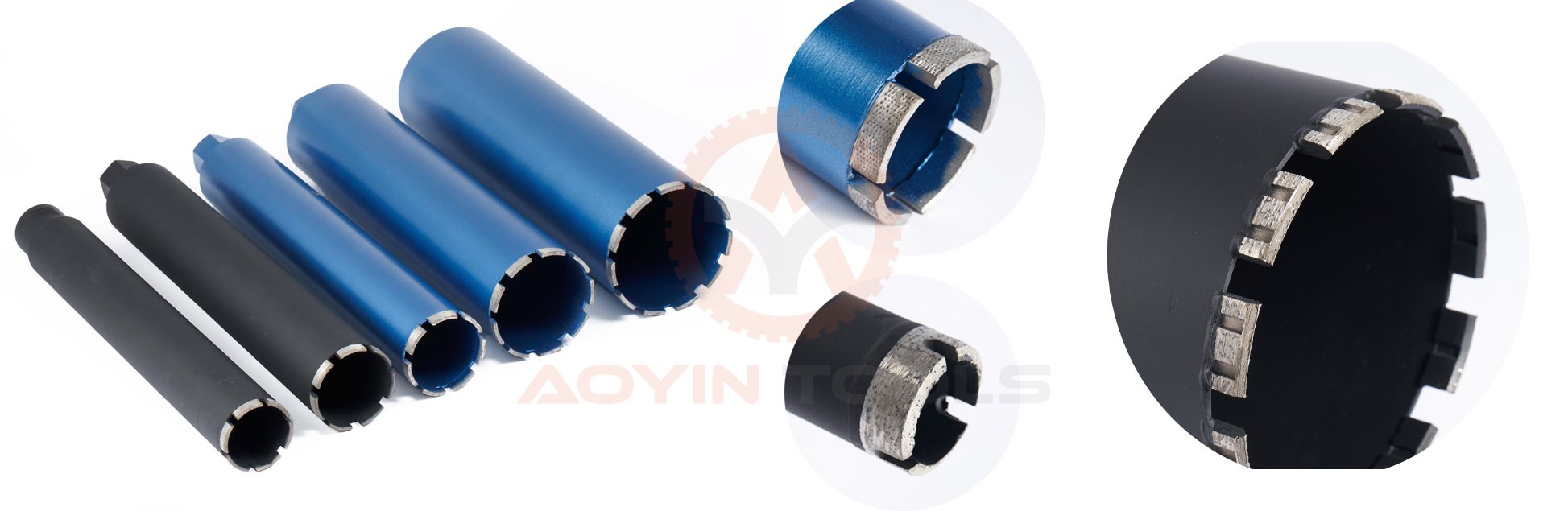

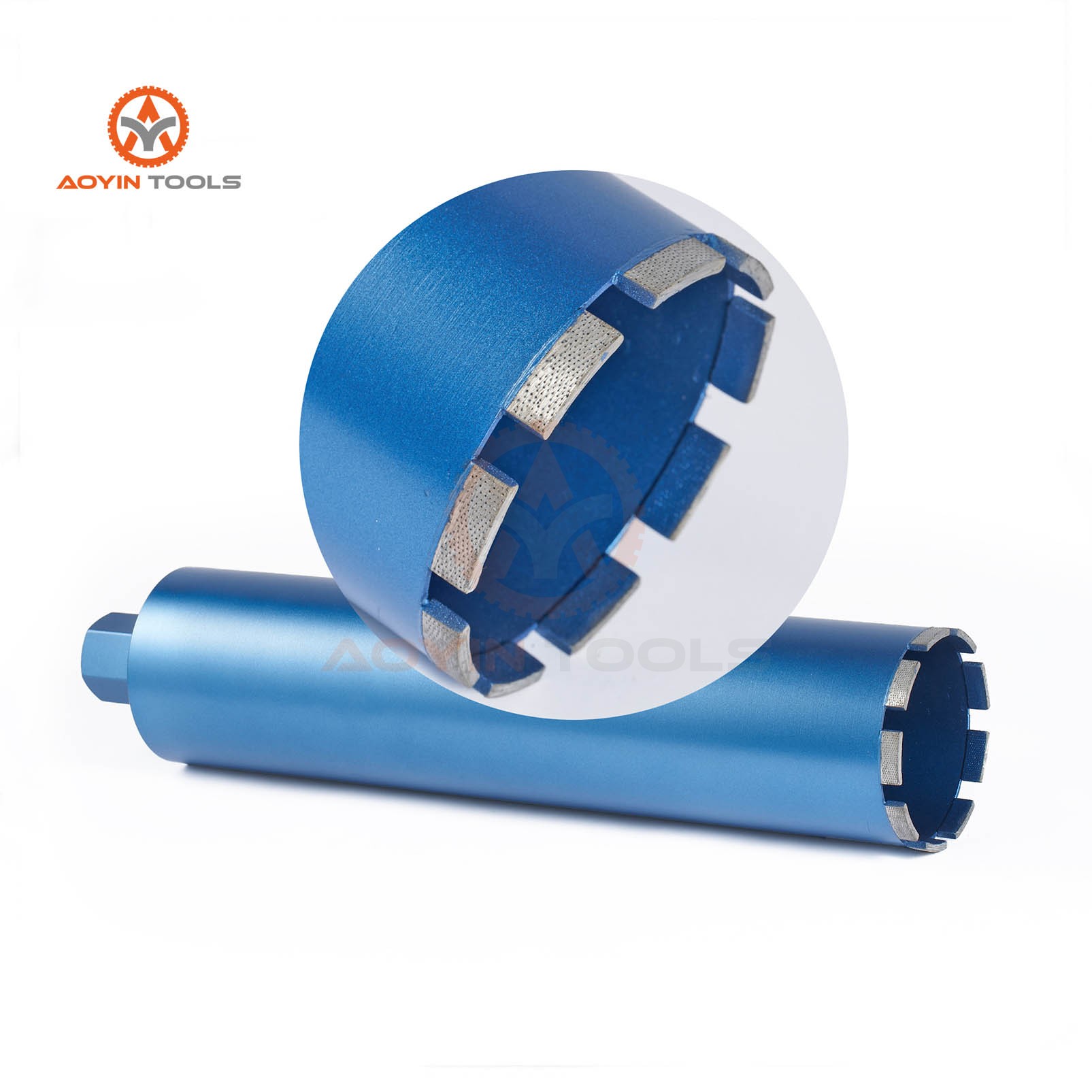

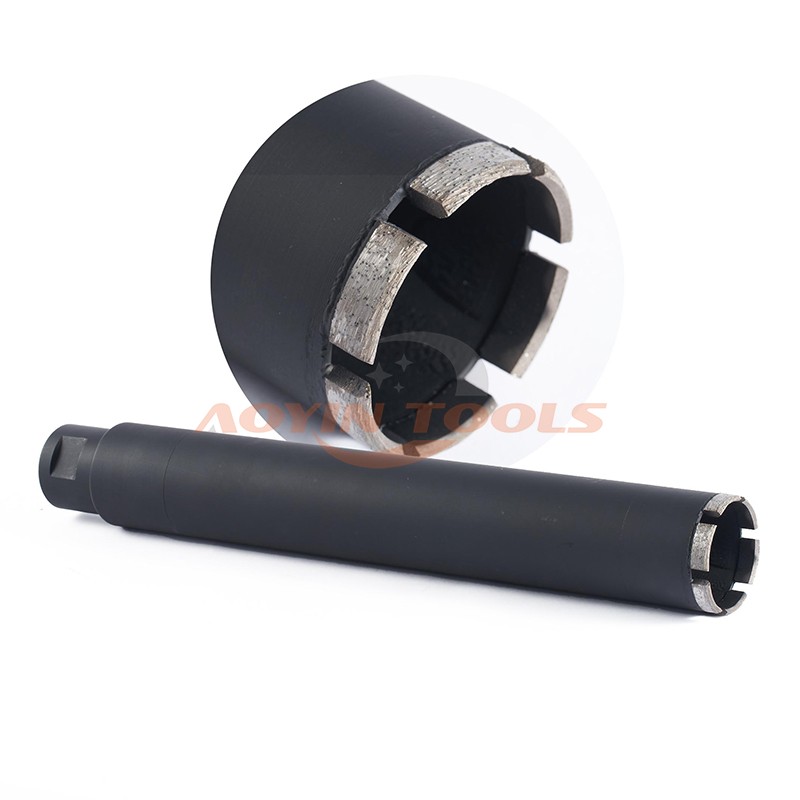

Our Core Bits for Reinforced Concrete are designed to deliver exceptional performance when drilling through the toughest reinforced concrete materials. These bits feature an optimized design with diamond segments arranged in an ordered array, providing enhanced cutting speed, extended tool life, and reliable precision. Compatible with machines ranging from 1.5-3.5Kw, these core bits are ideal for demanding construction and industrial applications.
Order(MOQ) :
5 pcsProduct Origin :
Fujian ChinaColor :
CustomShipping Port :
Xiamen PortLead Time :
7~20 days after payment recievedBrand Name :
OEMCustomized support :
Visualization ServiceDiamond Segmented Core Bits with Ordered Arrangement for Reinforced Concrete
Product Description:
The Core Bits are precision-engineered tools tailored for high-performance drilling in reinforced concrete. With a focus on durability and efficiency, these bits are essential for any construction or infrastructure project requiring consistent and reliable drilling capabilities.

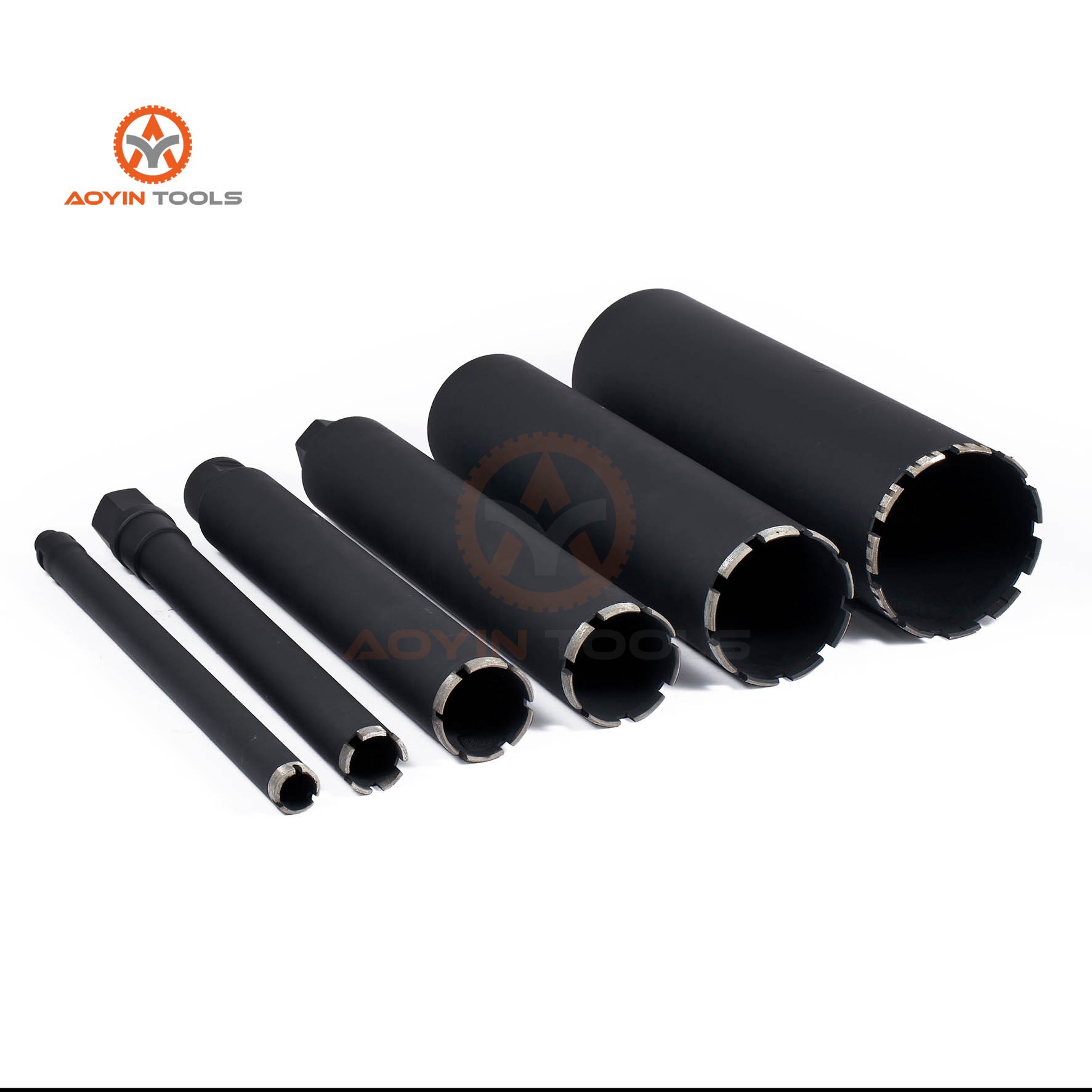

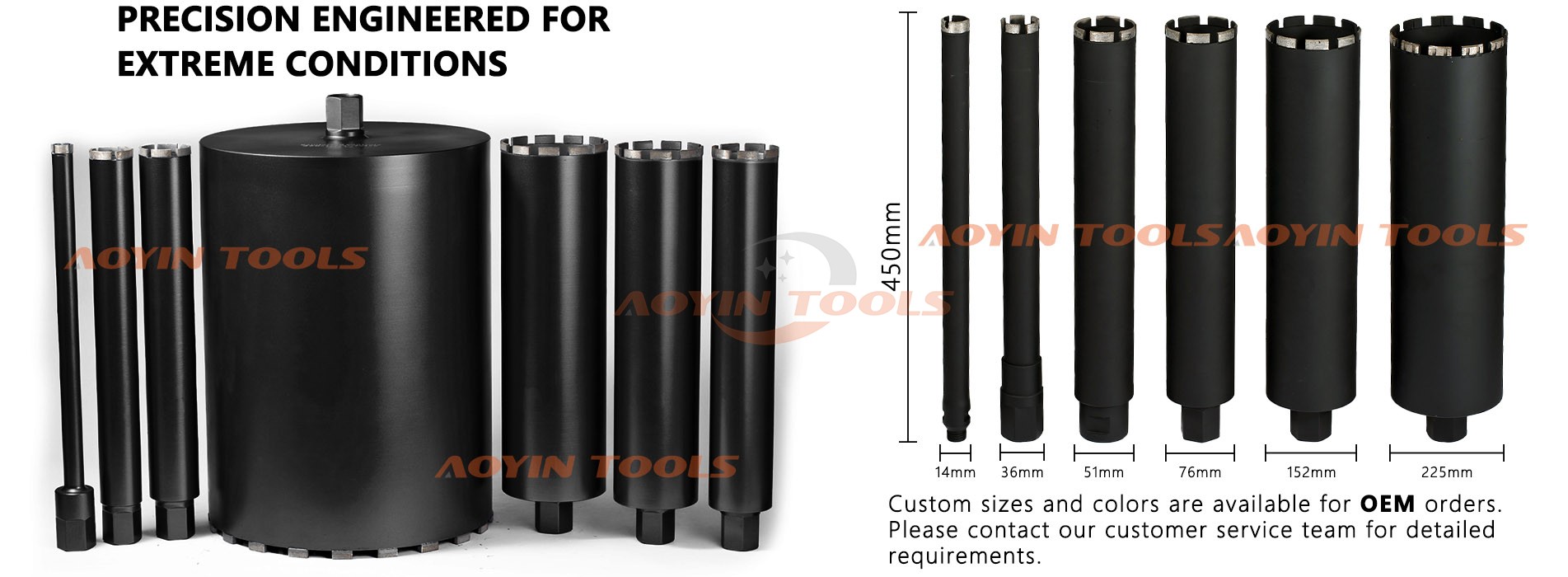

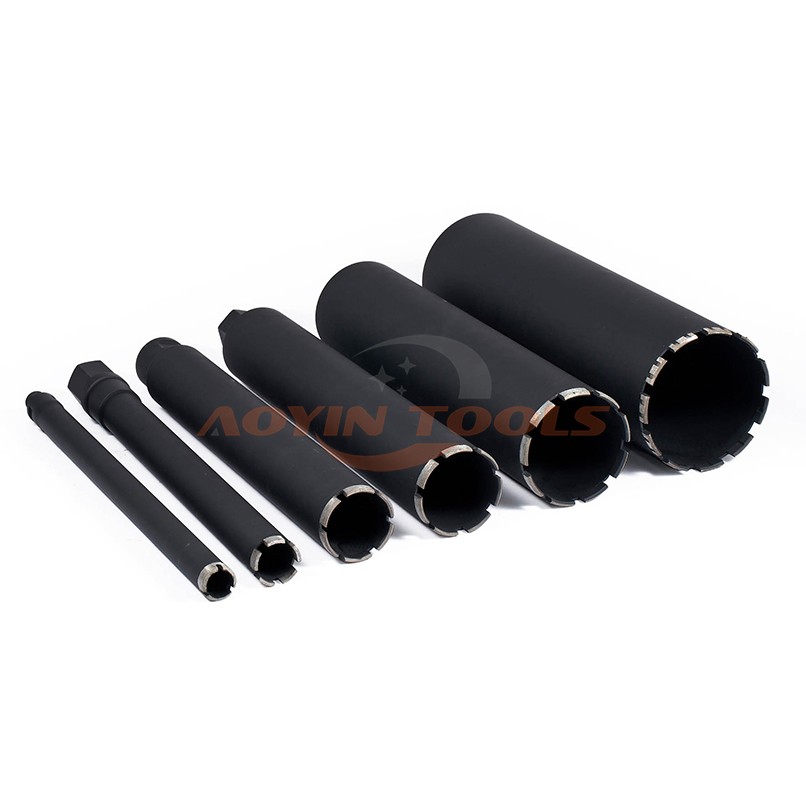

Product Parameters:
| DIAMETER | SEGMENT DIMENSION | USEFUL LENGTH | CONNECTION | |||
| L | T | W | N | |||
| 36 | 16 | 3.7 | 12 | 4 | 350/400/450/500 (VARIOUS CONNECTION UPON REQUEST) | 1-1/4 UNV (VARIOUS CONNECTION UPON REQUEST) |
| 38 | 16 | 3.7 | 12 | 5 | ||
| 40 | 16 | 3.7 | 12 | 5 | ||
| 42 | 24 | 3.7 | 12 | 5 | ||
| 47 | 24 | 3.7 | 12 | 4 | ||
| 51 | 24 | 3.7 | 12 | 5 | ||
| 63 | 24 | 3.7 | 12 | 6 | ||
| 68 | 24 | 3.7 | 12 | 6 | ||
| 78 | 24 | 3.7 | 12 | 7 | ||
| 82 | 24 | 3.7 | 12 | 7 | ||
| 92 | 24 | 3.7 | 12 | 8 | ||
| 102 | 24 | 3.7 | 12 | 9 | ||
| 108 | 24 | 3.7 | 12 | 9 | ||
| 112 | 24 | 3.7 | 12 | 9 | ||
| 122 | 24 | 4.0 | 12 | 10 | ||
| 127 | 24 | 4.0 | 12 | 11 | ||
| 132 | 24 | 4.0 | 12 | 11 | ||
| 152 | 24 | 4.5 | 12 | 12 | ||
| 162 | 24 | 4.5 | 12 | 12 | ||
| 172 | 24 | 4.5 | 12 | 12 | ||
| 182 | 24 | 4.5 | 12 | 13 | ||
| 202 | 24 | 4.5 | 12 | 15 | ||
| 212 | 24 | 4.5 | 12 | 16 | ||
| 225 | 24 | 4.5 | 12 | 16 | ||
| 250 | 24 | 4.5 | 12 | 16 | ||
| 300 | 24 | 5.0 | 12 | 17 | ||
| 350 | 24 | 5.0 | 12 | 20 | ||
Product Highlights:
1. Versatile Application: Our diamond core drill bits are suitable for drilling all kinds of hardness levels in reinforced concrete, making them versatile tools for construction projects.
2. Enhanced Durability: The laser welding technology ensures superior bonding strength, eliminating the risk of segment fall-off during drilling operations, resulting in long-lasting performance.
3. Exceptional Drilling Speed: These core bits offer an extremely fast drilling speed, allowing you to complete your drilling tasks efficiently and save valuable time.
4. Vibration-Free Operation: The design of our core bits ensures minimal vibration during drilling, providing a smoother drilling experience and reducing operator fatigue.
Application Areas:

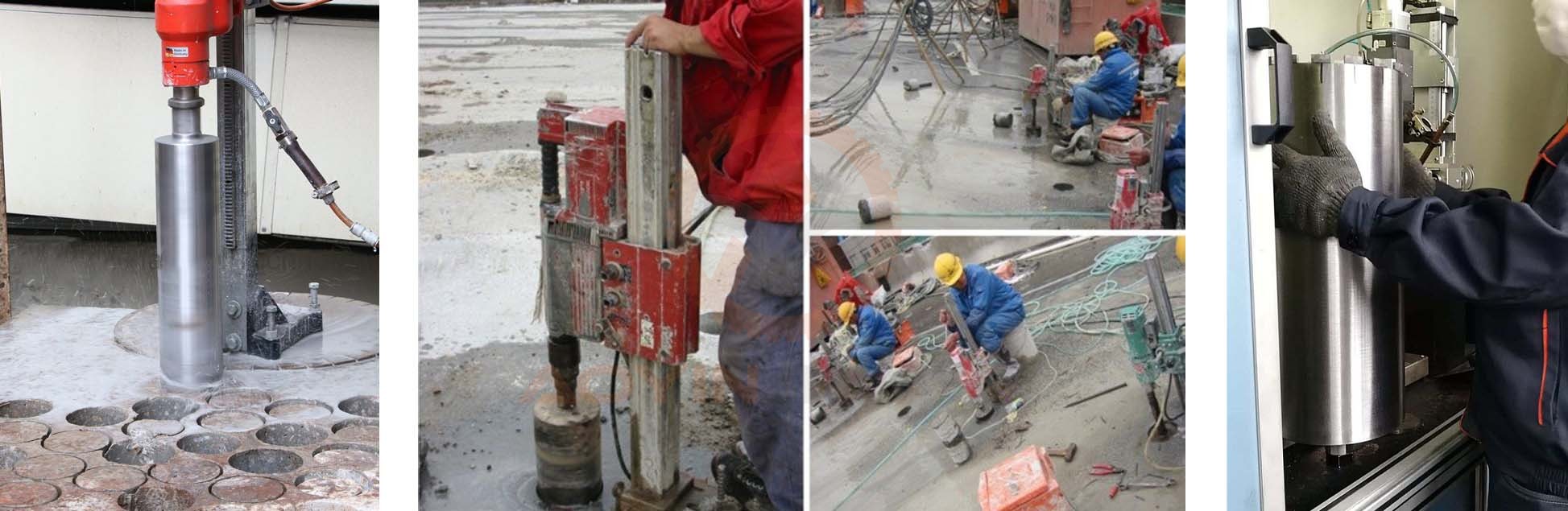

The diamond core drill bits for construction reinforced concrete are widely used in the construction industry for a variety of applications. They are ideal for drilling holes in reinforced concrete structures, such as walls, floors, columns, and beams. These core bits are essential tools for contractors, builders, and construction professionals who require precise and efficient drilling in reinforced concrete materials.
Company Service Advantage:
As a leading provider of cutting solutions, we are committed to customer satisfaction and excellent service. Our team of experts is dedicated to providing personalized assistance and guidance to help you select the right products for your specific drilling needs. We offer efficient and reliable shipping services to ensure timely delivery of your orders. Additionally, our comprehensive after-sales support aims to address any inquiries or concerns you may have, ensuring your satisfaction with our products.
FAQ - Frequently Asked Questions:
Q1：What machines are these core bits compatible with?
Our core bits are compatible with machines ranging from 1.5-3.5Kw. For other specifications, please contact us for customization options.
Q2：Can I customize the thread connection?
Yes, we offer a variety of thread connections beyond the standard 1-1/4UNV. Customization is available upon request.
Q3：How do I ensure the longevity of these core bits?
Regular maintenance and proper use according to the specified power range and material type will help extend the life of your core bits.
Q4：What makes these core bits ideal for reinforced concrete?

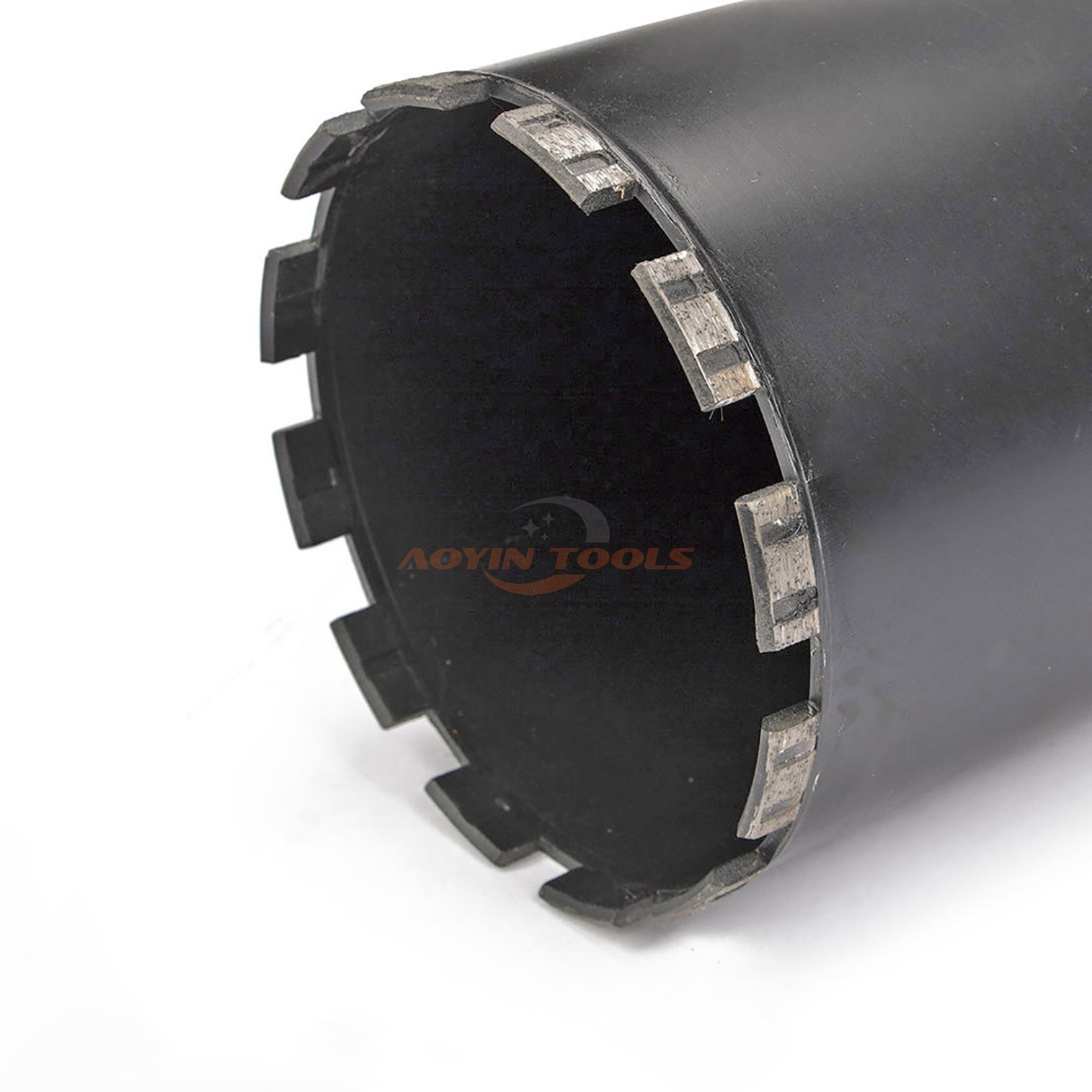

The diamond segments are arranged in an ordered array, optimizing the bit for efficient and precise drilling in reinforced concrete.

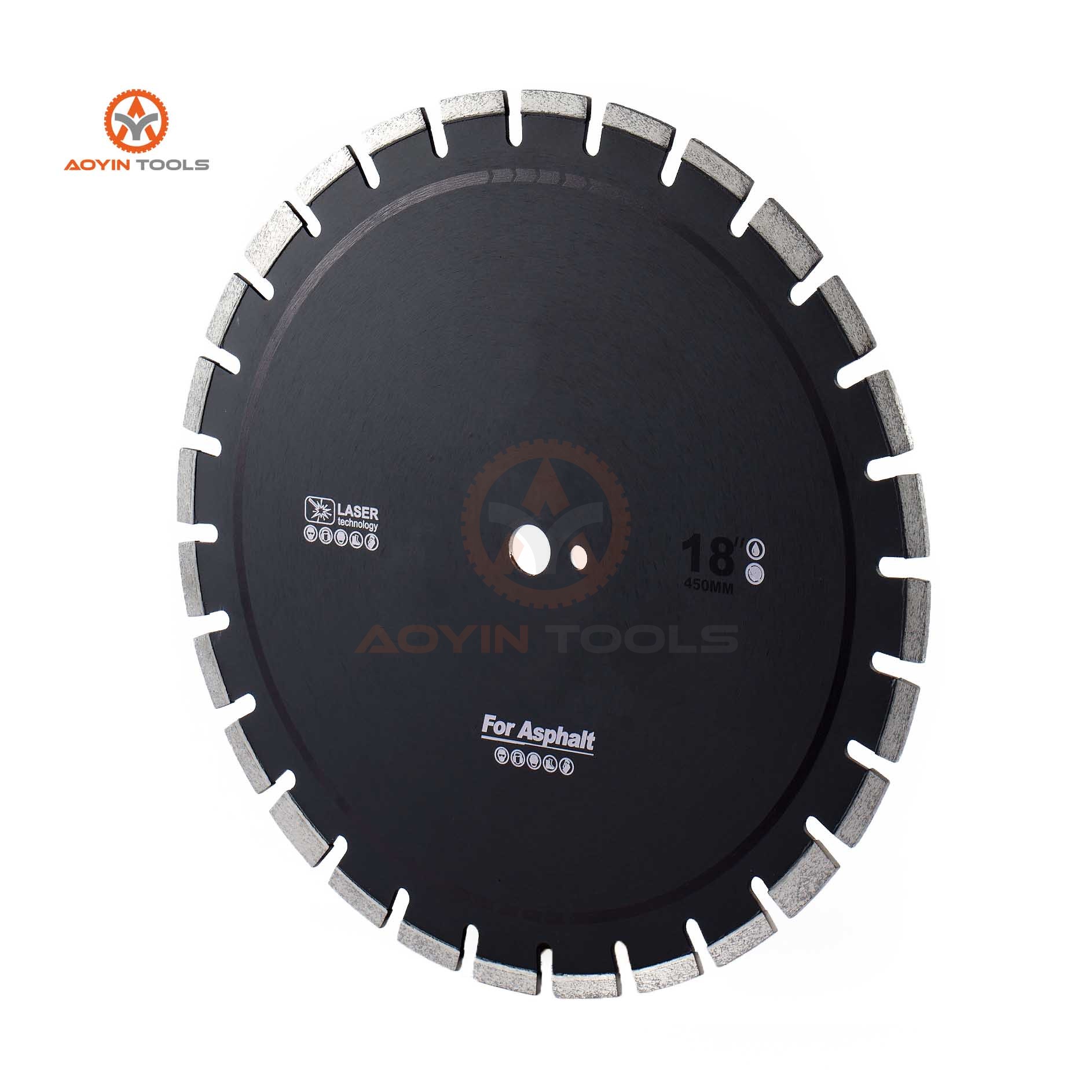

Our diamond laser asphalt blade, a high horsepower blade designed for 35-70HP machines. This exceptional blade offers unparalleled advantages for a variety of stone and concrete products. With its advanced technology and superior cutting performance, our diamond laser asphalt blade is the ultimate solution for all your cutting needs.
Our diamond laser asphalt over concrete blade, a cutting-edge tool designed specifically for various abrasive building materials. with its exceptional features and advantages, this blade is ideal for a wide range of applications.

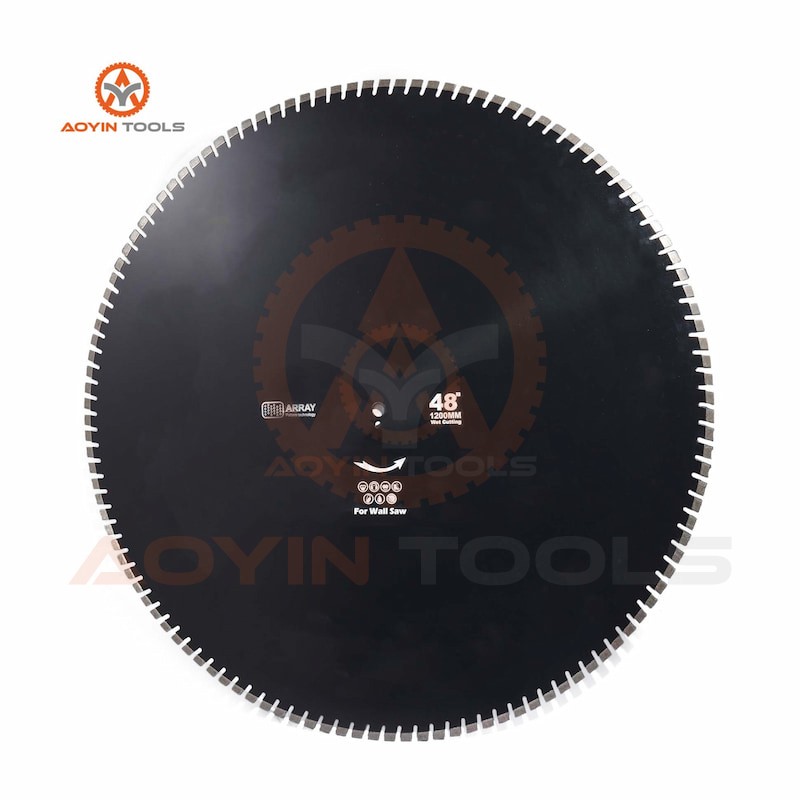

Our revolutionary V shape laser welded diamond wall saw blade,with the combination of diamond three-dimensional spatial arrangement technology and an ultra-fine cobalt-base alloy powder matrix, this blade sets new standards for efficiency and performance. Experience faster cutting, extended lifespan, and enhanced stability with our V Shape diamond wall saw blade.
Experience outstanding cutting performance with our Rhombus Laser Welded Diamond Wall Saw Blade for Cutting Concrete. Utilizing diamond three-dimensional spatial arrangement technology and an ultra-fine cobalt-base alloy powder matrix, this blade enhances diamond utilization efficiency, resulting in faster, longer-lasting, and more stable diamond tool use. Achieve cutting efficiency, extended lifespan, and superior quality with our Rhombus Diamond Wall Saw Blade.

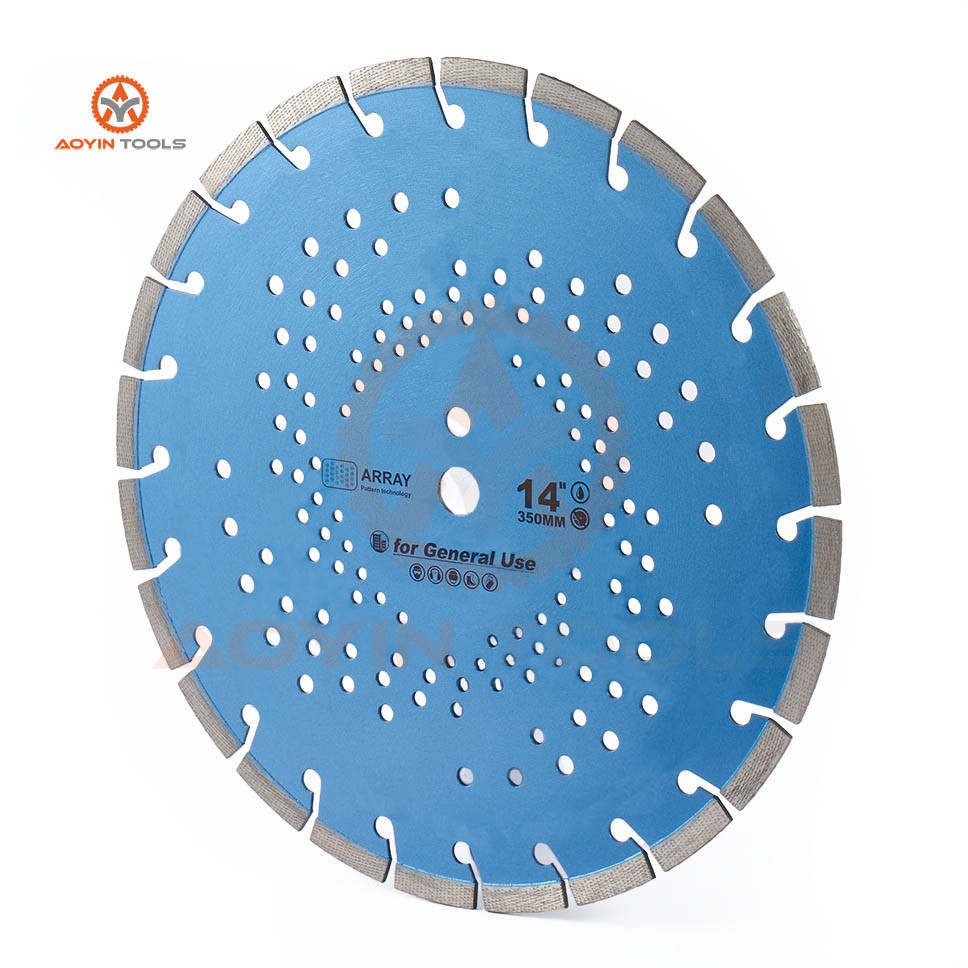

our laser welded diamond handheld saw blade with a spiral hole steel core. This versatile blade is designed for use with handheld saw machines, table saw machines, and low-power flat saw machines. Its exceptional features make it suitable for cutting a wide range of materials including reinforced concrete, brick, granite, and various hardness building materials. With its outstanding performance, this blade is a must-have tool for professionals in diverse industries.

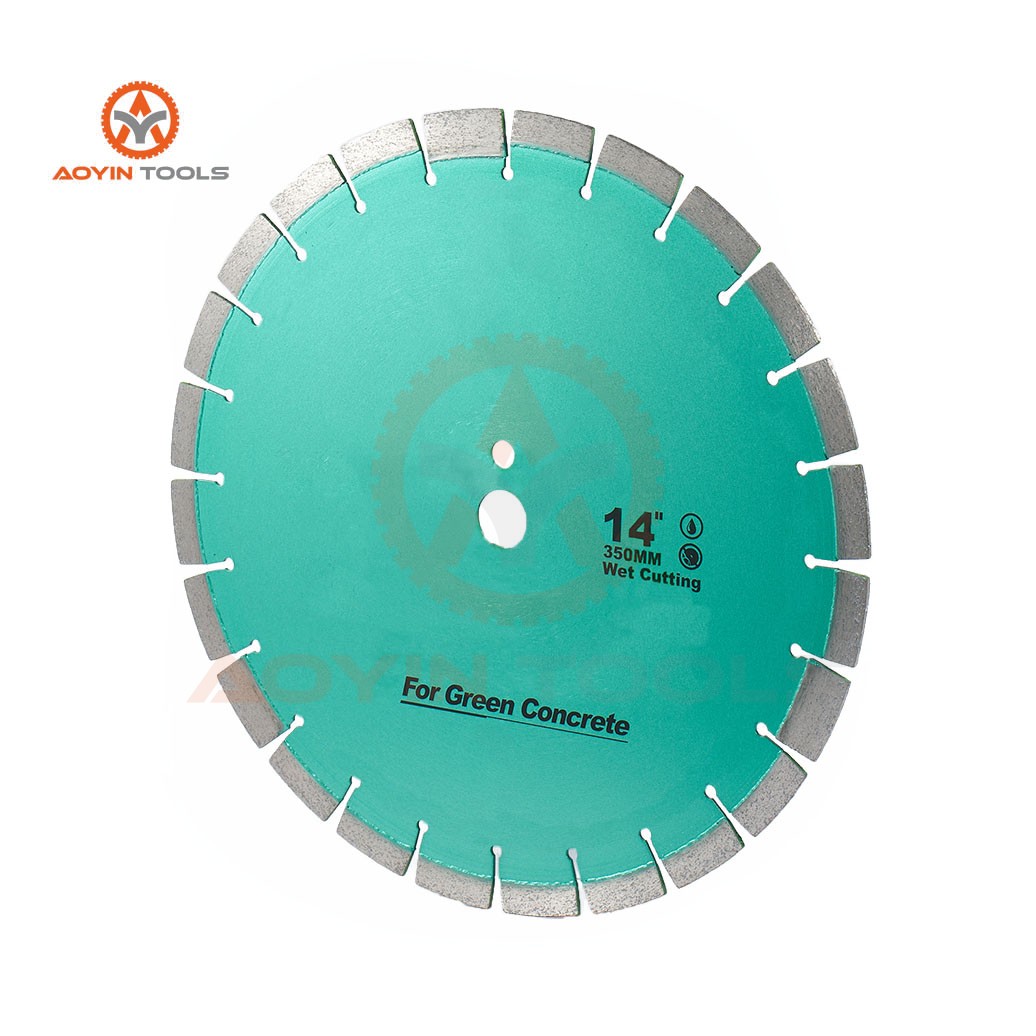

Our drop segment type laser welding green concrete blade, a cutting-edge tool specifically designed for precision cutting of various abrasive building materials. This blade excels in slicing through challenging materials such as asphalt, green concrete, and asphalt over concrete. Its exceptional performance and durability make it an essential tool for professionals in construction and related industries.

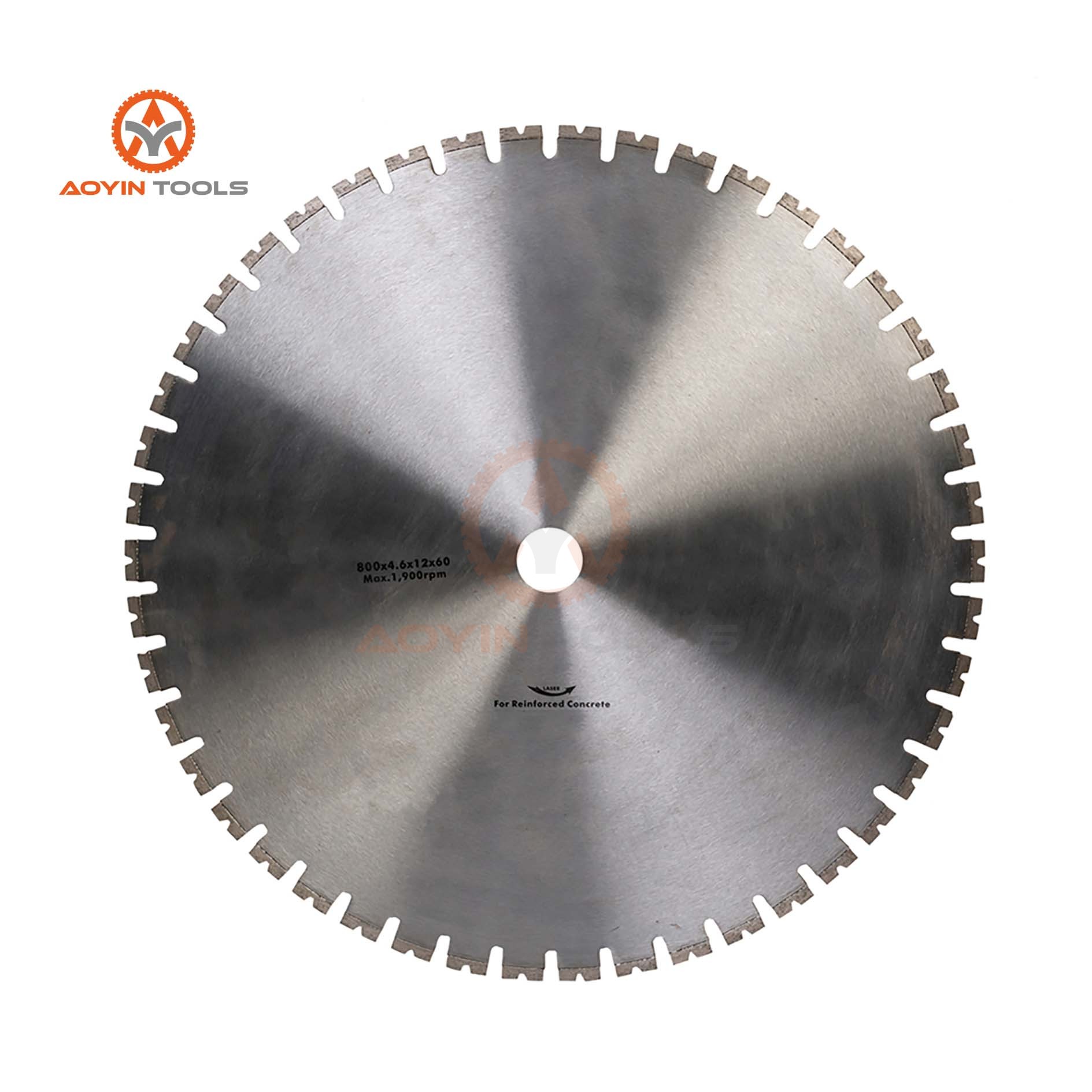

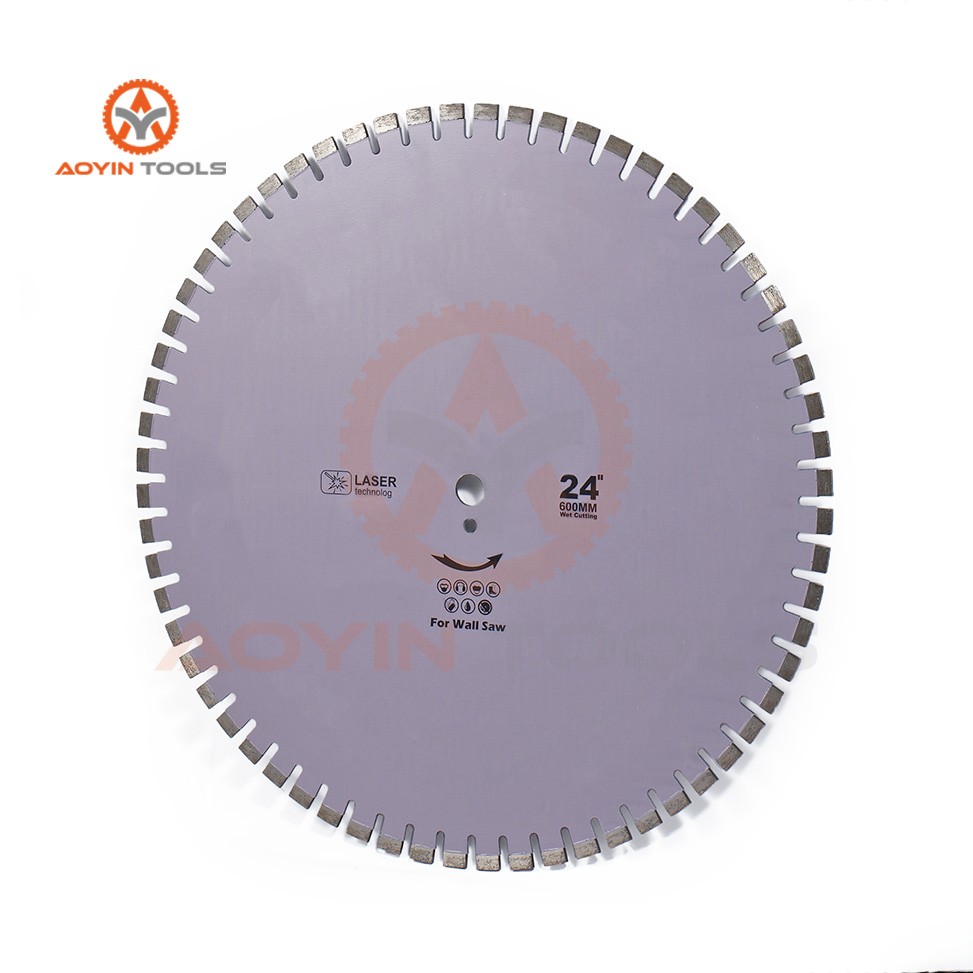

Our normal laser welded diamond wall saw blade for cutting concrete, a high-performance tool designed for precision cutting of reinforced concrete. This versatile blade is suitable for use with 10-30 kW power machines and offers exceptional performance in various materials. With its three bond options and compatibility with different wall saw machine types, our wall saw blade ensures efficient and precise cutting operations, making it an ideal choice for professionals in the construction and demolition industries.
