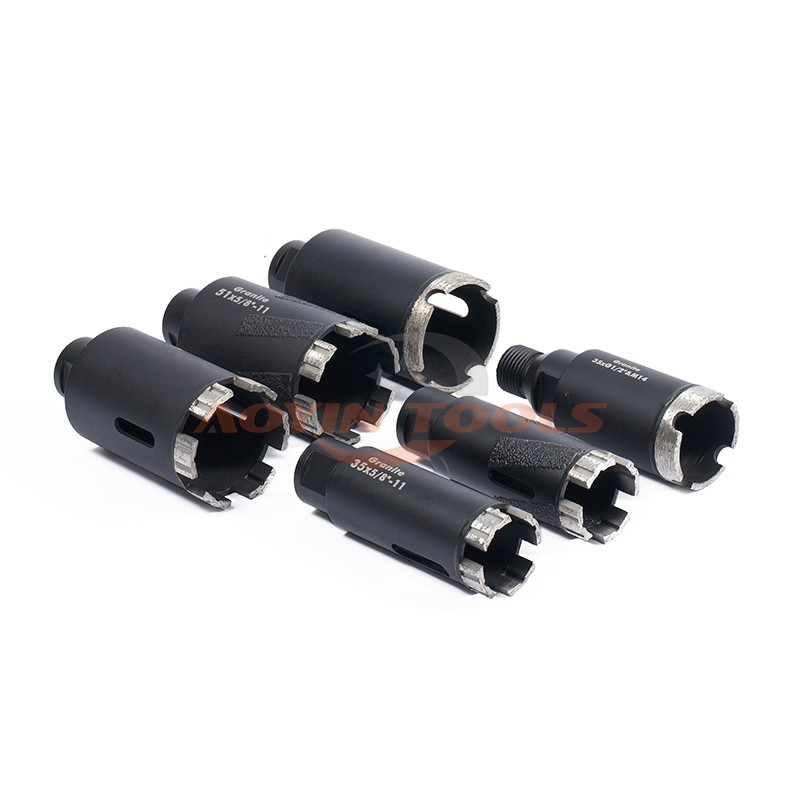

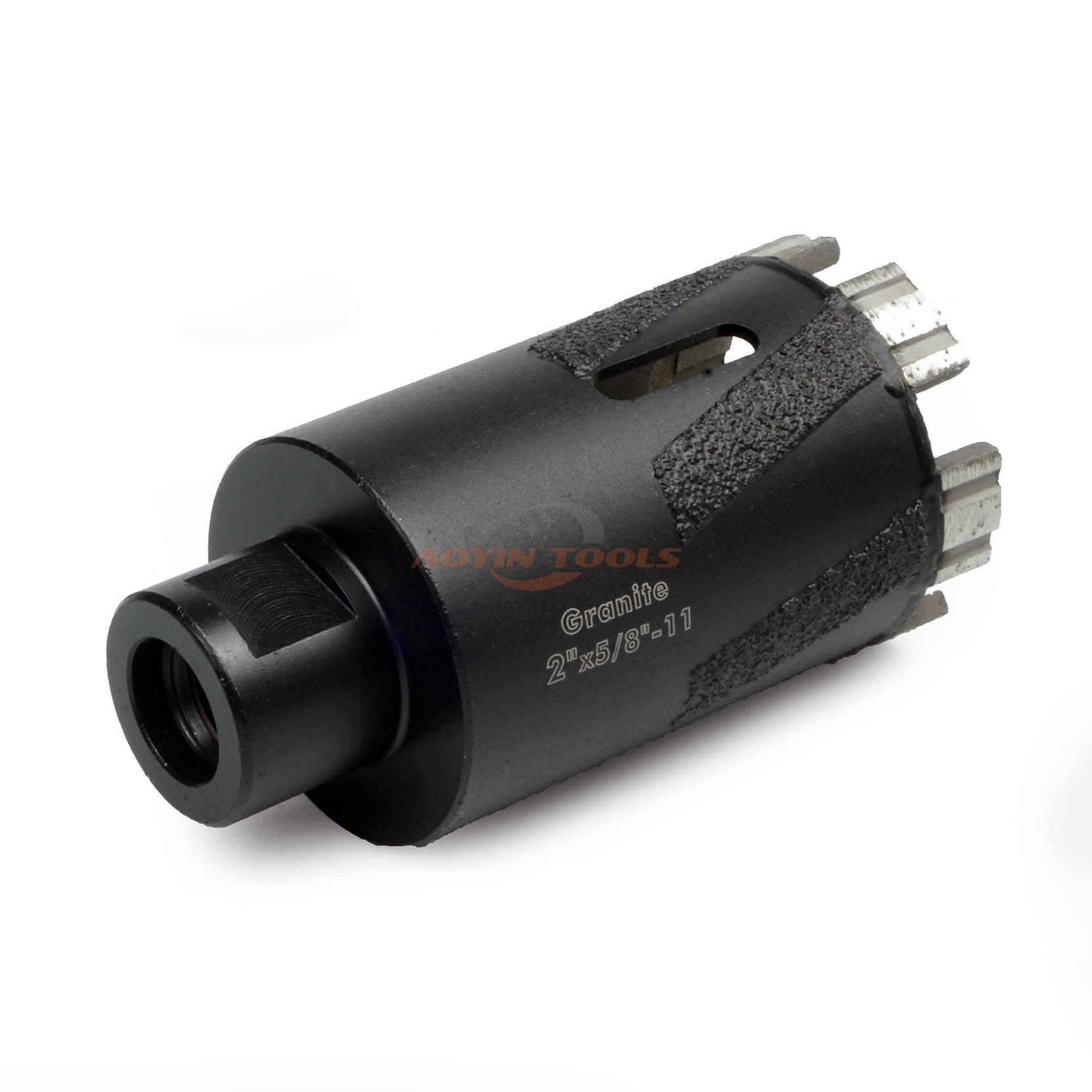

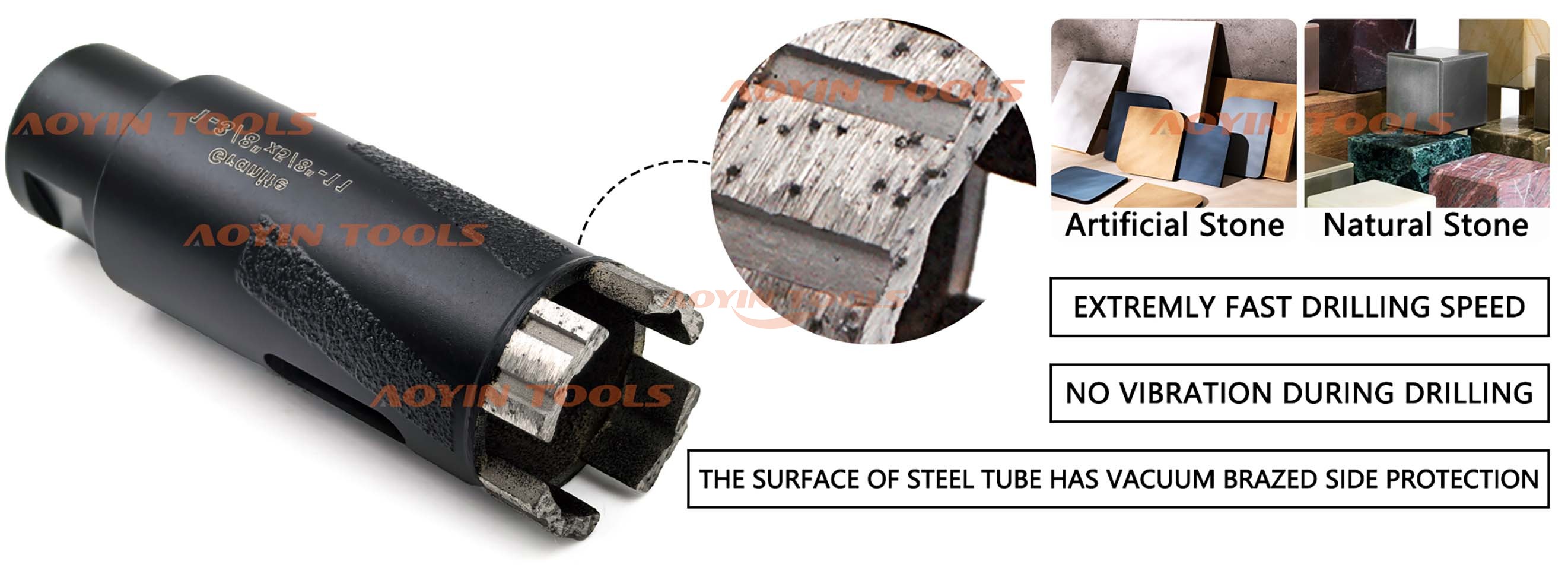

Our turbo type core drill bit with vacuum brazed side protection for stone. This high-quality core bit is specifically designed for wet and dry drilling of various hardness levels of stone, including granite, marble, and artificial stone. With its exceptional features, this core bit offers efficient and precise drilling, making it an essential tool for professionals in the stone industry.
Item No :
DDB-01Order(MOQ) :
10Product Origin :
Fujian,ChinaColor :
CustomShipping Port :
Xiamen PortLead Time :
7-20 days after paymentCustomized support :
Visualization ServiceBrand Name :
OEMTurbo Type Core Drill Bit With Vacuum Brazed Side Protection For Stone
Product Description:

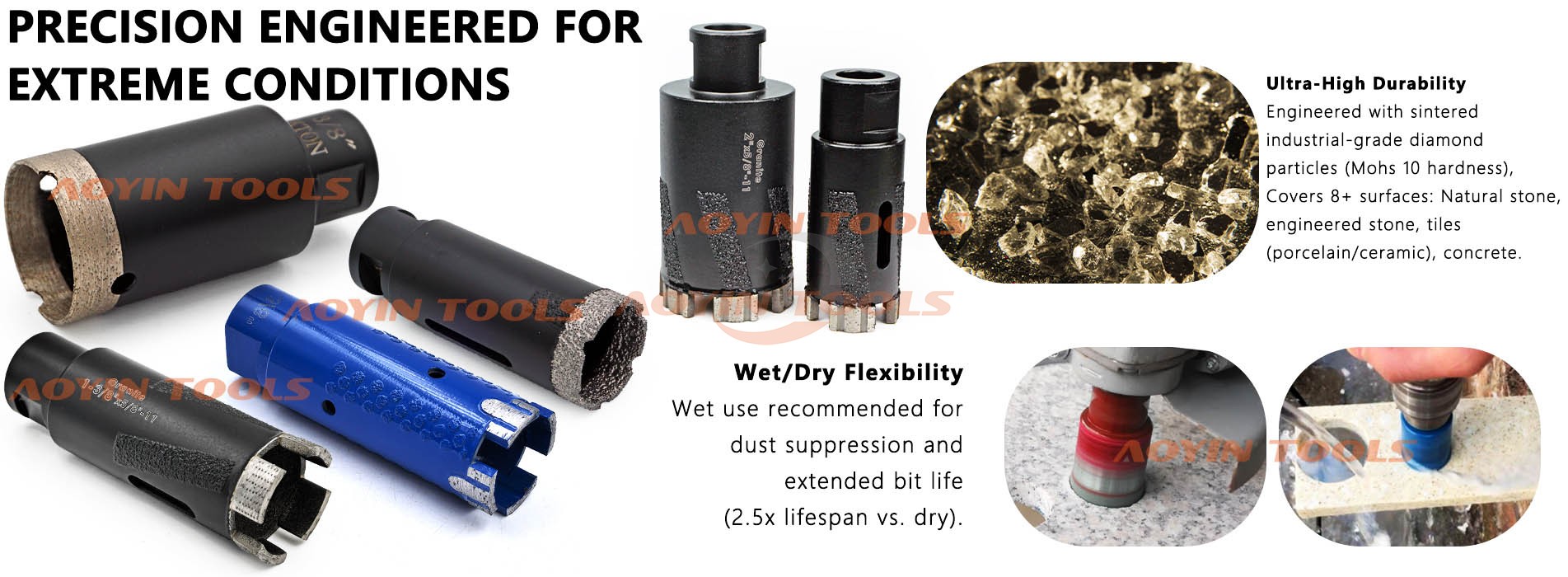

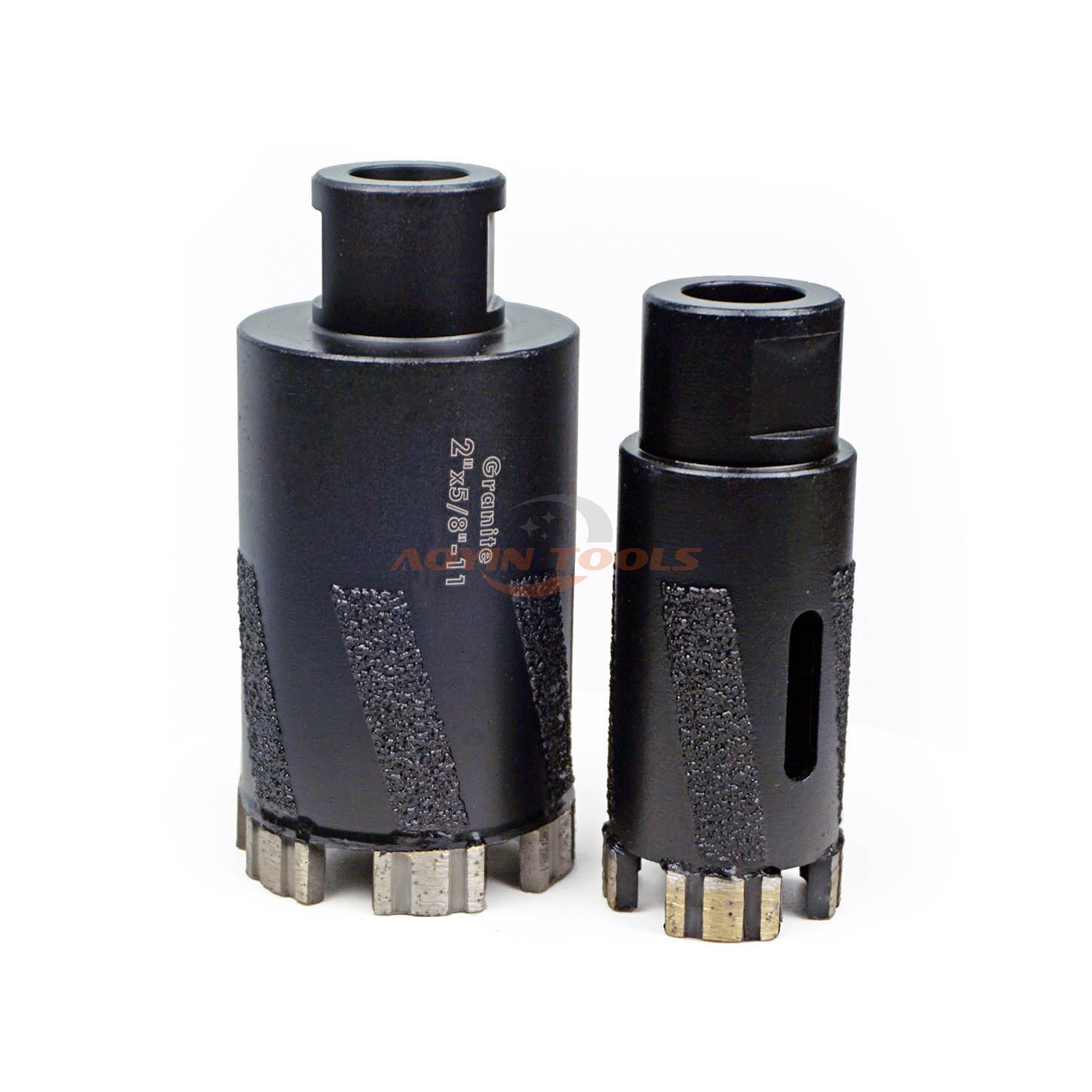

Our turbo type core drill bit with vacuum brazed side protection is designed for both wet and dry drilling of various hardness levels of stone. It is suitable for drilling natural stone, such as granite and marble, as well as artificial stone. The surface of the steel tube is embedded with vacuum brazed side protection, enhancing durability and ensuring smooth and efficient drilling. This core bit delivers an extremely fast drilling speed and eliminates vibrations during drilling operations.
Product Parameters:
- Product Type: Turbo type core drill bit with vacuum brazed side protection
- Application: Designed for wet and dry drilling of various hardness levels of stone
- Suitable Materials: Natural stone (granite, marble) and artificial stone
- Drilling Speed: Extremely fast drilling speed
| DIAMETER | SEGMENT DIMENSION | LENGTH | CONNECTION | |||
| L | T | W | N | |||

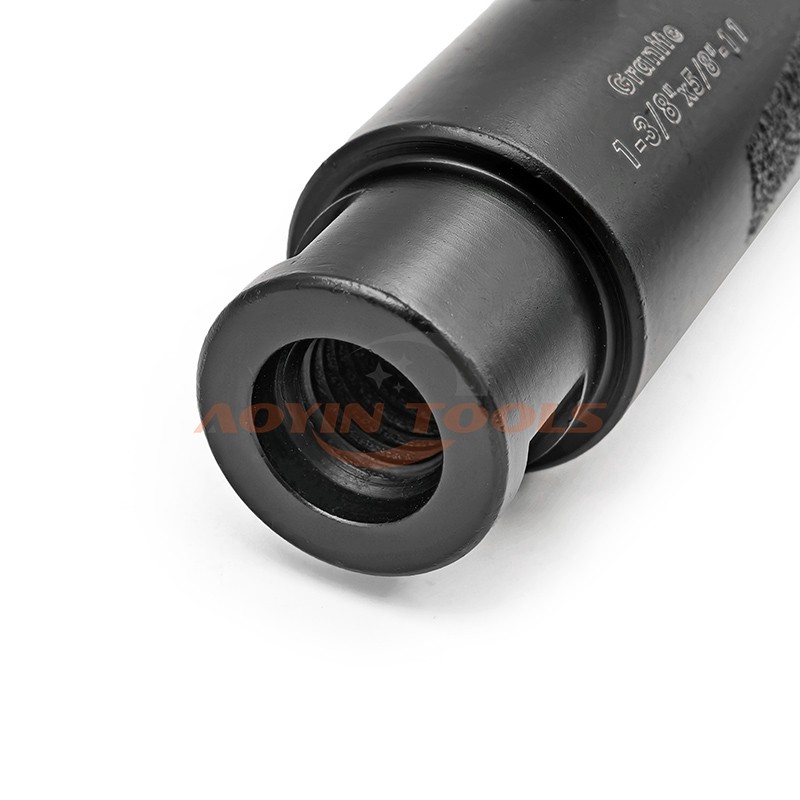

| 20 | 15 | 3 | 10 | 1 | 104(VARIOUS LENTH UPON REQUEST) | M14/5/8-11 (VARIOUS CONNECTION UPOΝ REQUEST) |
| 25 | 16 | 3 | 10 | 3 | ||
| 30 | 16 | 3 | 10 | 4 | ||
| 32 | 16 | 3 | 10 | 4 | ||
| 35 | 16 | 3 | 10 | 4 | ||
| 40 | 16 | 3 | 10 | 4 | ||
| 45 | 16 | 3 | 10 | 5 | ||
| 50 | 16 | 3 | 10 | 5 | ||
| 55 | 16 | 3 | 10 | 6 | ||
| 60 | 16 | 3 | 10 | 6 | ||
| 65 | 16 | 3 | 10 | 6 | ||
| 70 | 16 | 3 | 10 | 6 | ||
| 80 | 16 | 3 | 10 | 7 | ||
| 90 | 16 | 3 | 10 | 8 | ||
| 100 | 16 | 3 | 10 | 9 | ||
| 110 | 16 | 3 | 10 | 9 | ||
| 120 | 16 | 3 | 10 | 10 | ||
| 150 | 16 | 3 | 10 | 12 | ||
| 160 | 16 | 3 | 10 | 12 | ||
Product Highlights:
1. Versatile Application: Our core drill bit is suitable for drilling all kinds of hardness levels of natural stone, including granite and marble, as well as artificial stone.

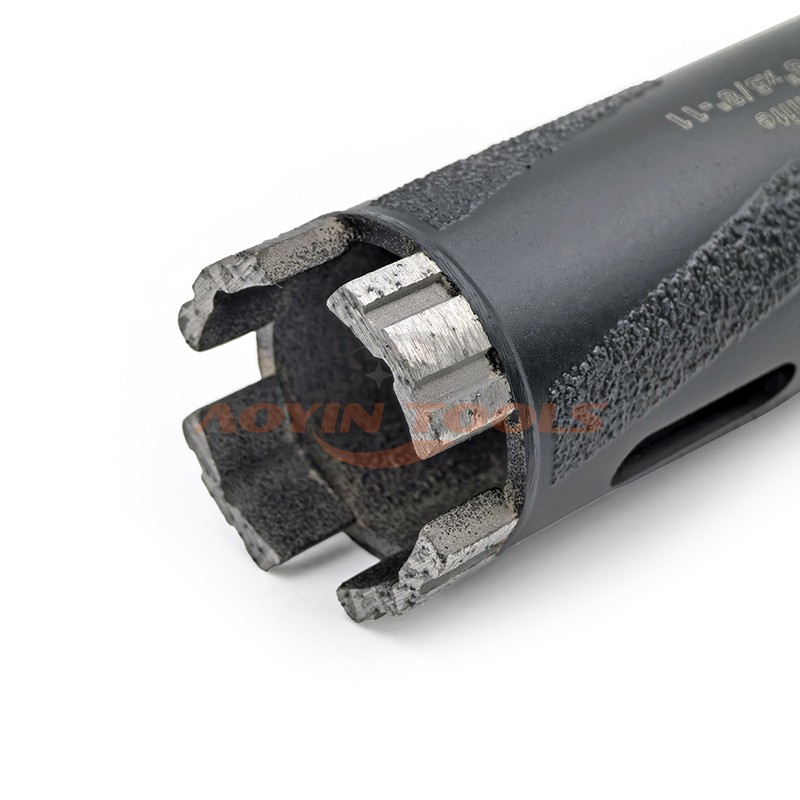

2. Vacuum Brazed Side Protection: The surface of the steel tube is embedded with vacuum brazed side protection, increasing durability and ensuring smooth drilling operations.
3. Fast Drilling Speed: This core bit offers an extremely fast drilling speed, allowing for efficient and timely drilling on stone materials.
4. Vibration-Free Drilling: The design of our core drill bit eliminates vibrations during drilling, providing a stable and precise drilling experience.
Application Areas:
The turbo type core drill bit with vacuum brazed side protection is widely used in the stone industry for drilling operations. It is suitable for both wet and dry drilling of various hardness levels of natural stone, including granite and marble, as well as artificial stone. This core bit is essential for stone fabricators, installers, and professionals involved in stone construction and renovation projects.
Company Service Advantage:
As a trusted provider of cutting solutions, we prioritize customer satisfaction and excellent service. Our team of experts is dedicated to providing personalized assistance and guidance to help you find the right tools for your specific drilling needs. We offer efficient and reliable shipping services to ensure timely delivery of your orders. Additionally, we provide comprehensive after-sales support, addressing any inquiries or concerns you may have, ensuring your satisfaction with our products.
FAQ - Frequently Asked Questions:
Q1: Can this core drill bit be used for both wet and dry drilling?
A1: Yes, our core drill bit is designed for both wet and dry drilling applications. It offers versatility for drilling natural stone and artificial stone in various hardness levels.
Q2: What types of stone materials can this core bit drill through?
A2: This core drill bit is suitable for drilling natural stone materials, including granite and marble, as well as artificial stone materials.
Q3: Does this core bit minimize vibrations during drilling?
A3: Yes, our core drill bit is designed to eliminate vibrations during drilling operations. This ensures a stable and precise drilling experience, providing high-quality results.
