The AC 5 Axis Gantry Type Cutting Table boasts a robust construction, ensuring stability and durability even in the most demanding of cutting operations. The gantry structure provides superior rigidity, allowing for high-speed cutting without compromising accuracy.

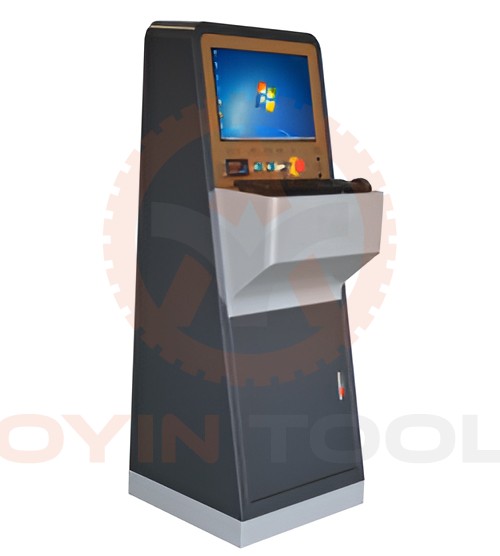

Equipped with advanced CNC software, operators can easily program and control the cutting process with utmost precision. The intuitive interface and user-friendly controls make it possible for both novice and experienced operators to achieve excellent results.
Color :
CustomizedShipping Port :
Xiamen PortLead Time :
7-35 days after paymentCustomized support :
Visualization ServiceBrand Name :
OEMAC 5 Axis Gantry Type Cutting Table
Basic machine specification:

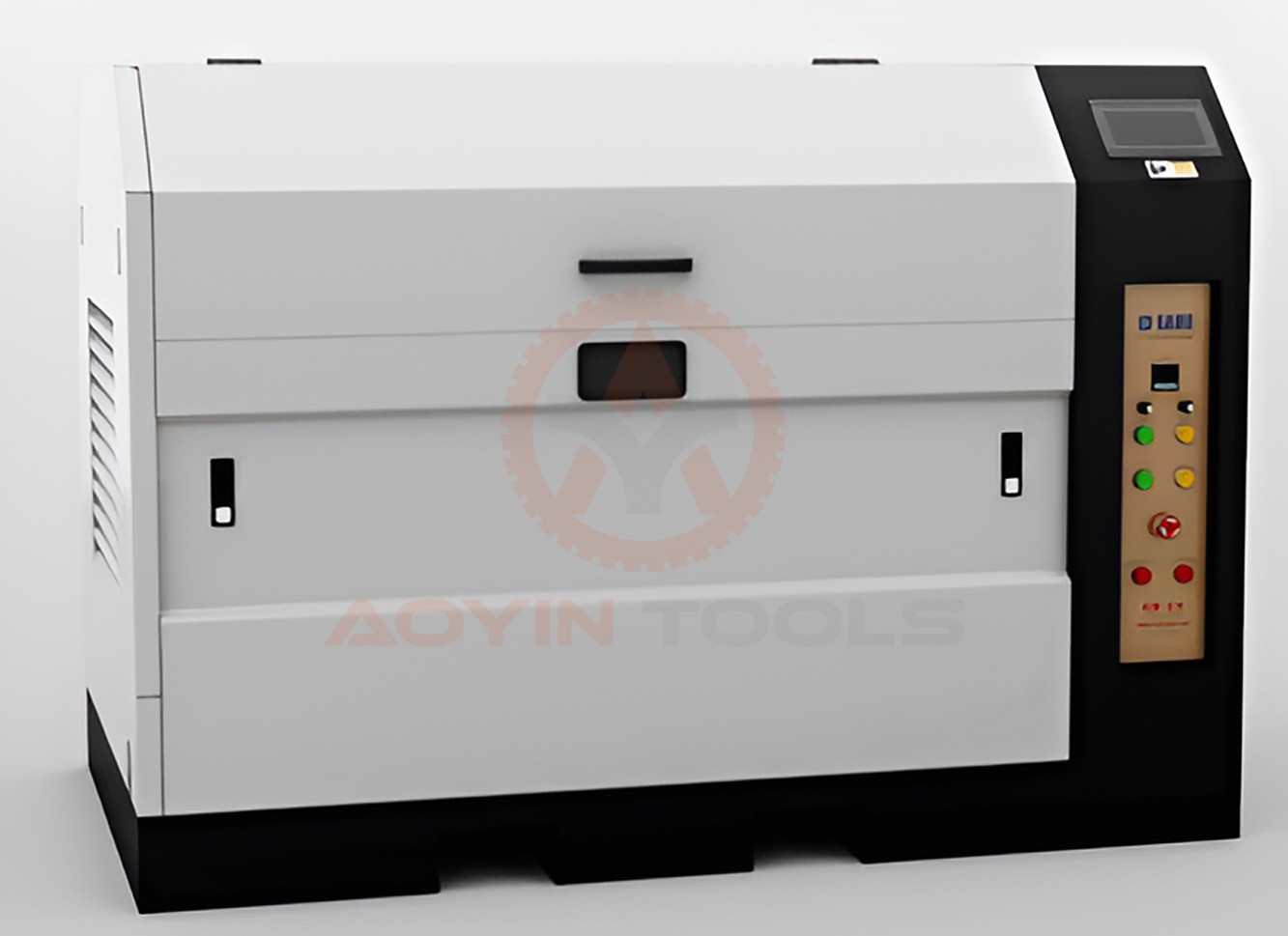

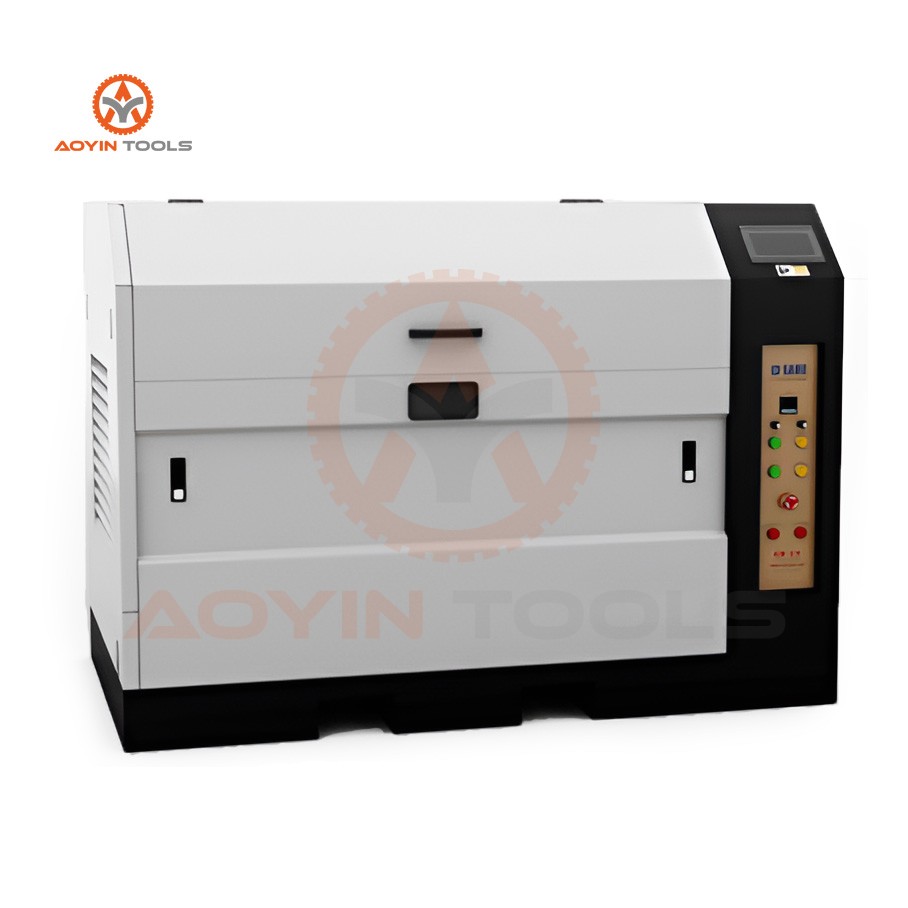

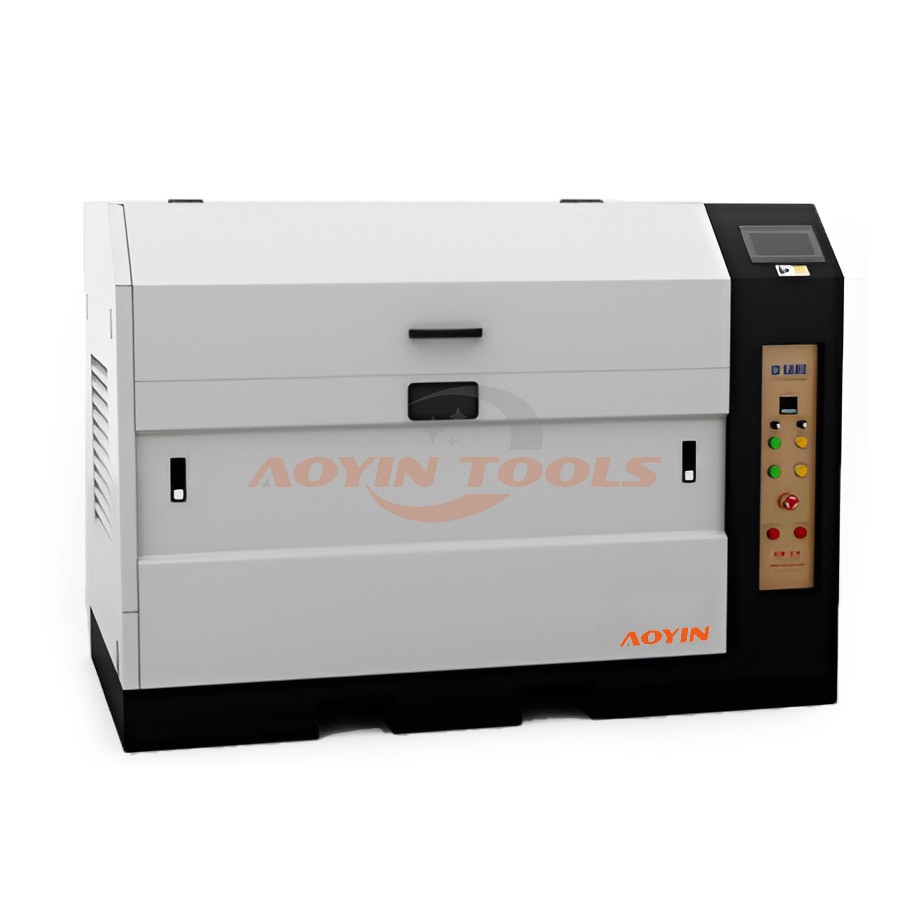

1)50HE intensifier pump
Dimension(L*W*H) | 1800mmx1000mmx1400mm |
Weight | 1130Kg |
Power rate | 37kw/50hp |
Max. pressure | 420Mpa /4200bar |
Working pressure | 300-350Mpa |
Max. oil discharge | 104L/min |
Max. Flow rate | 3.7L/min |
Max.Φ of orifice | 0.33mm |
Power supply | 380V 50Hz |
Water supply | ≥15.1L/min |
Water pressure | ≥0.1Mpa |
Hydraulic pump | Bosch Rexroth brand variable displacement hydraulic pump |
Electro-hydraulic proportional valve | Bosch Rexroth brand |
Cooling system | Air cooling system |

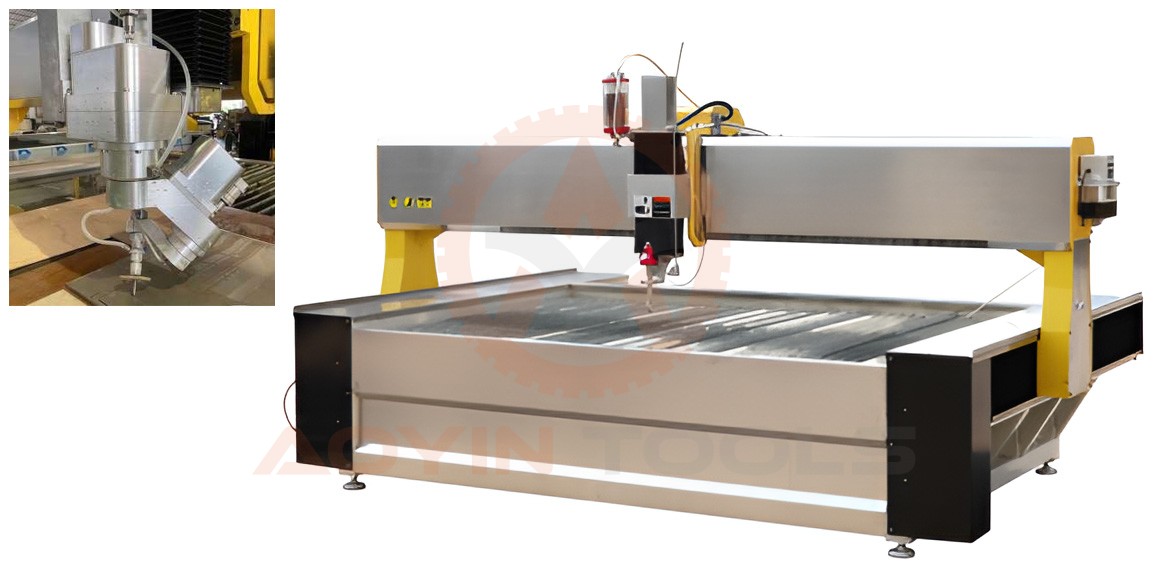

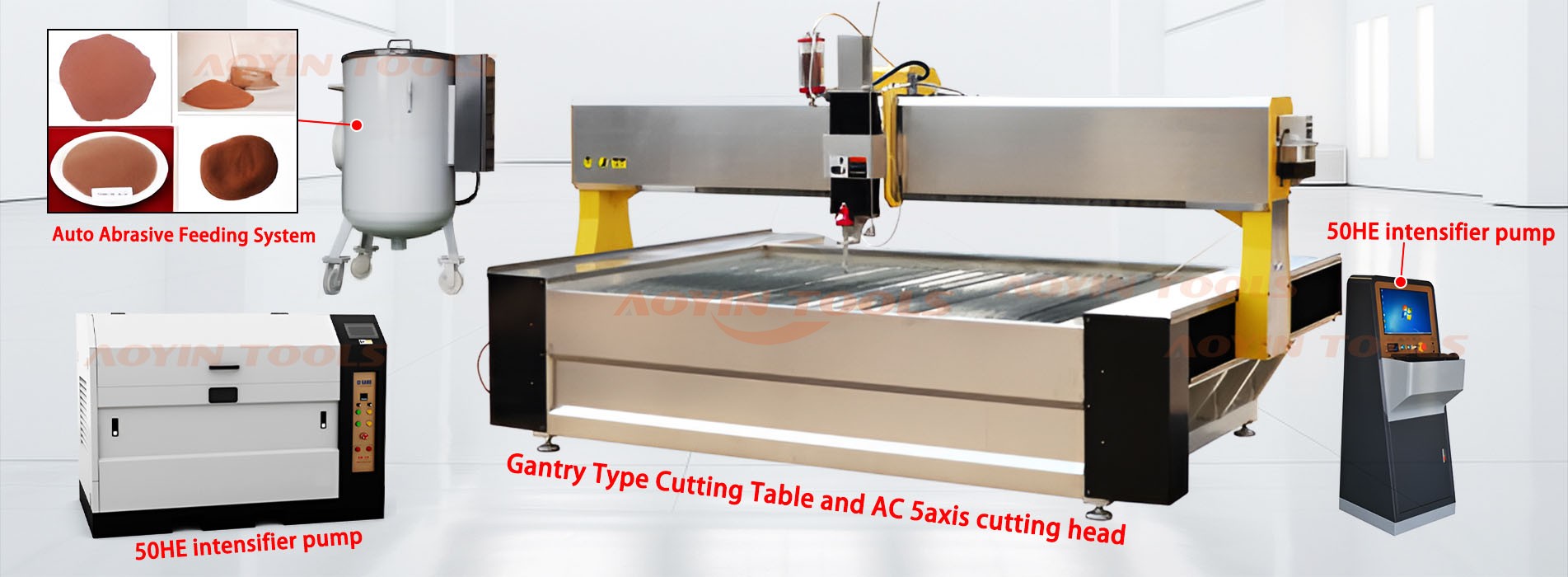

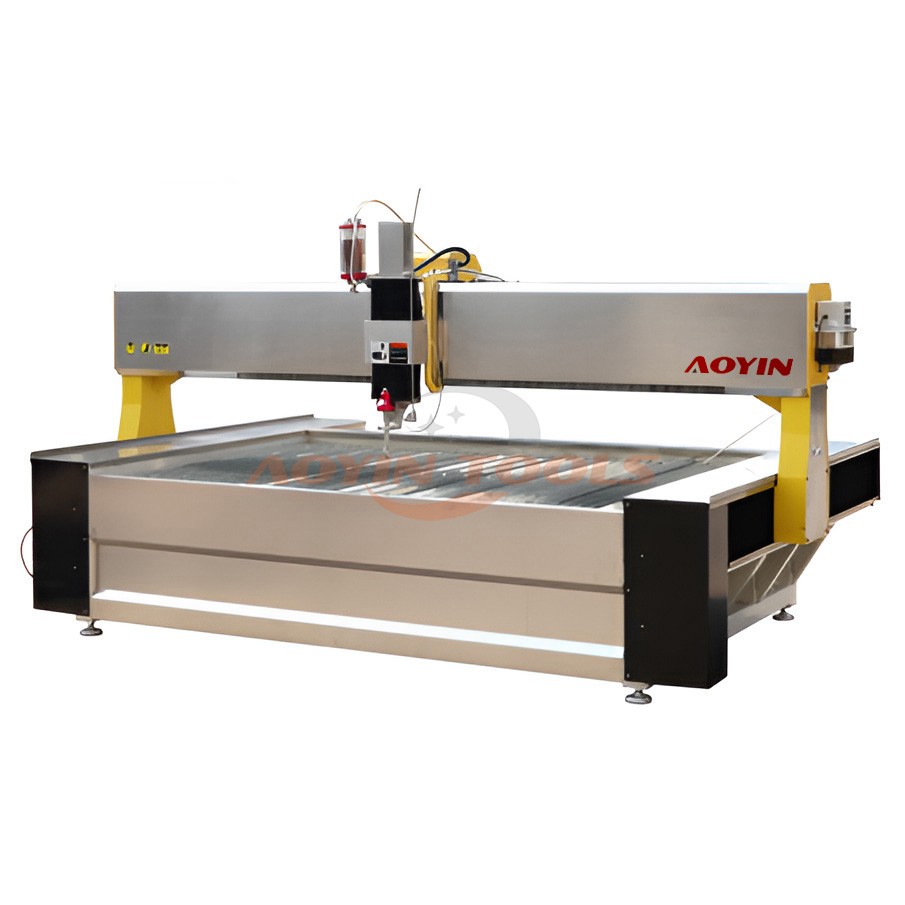

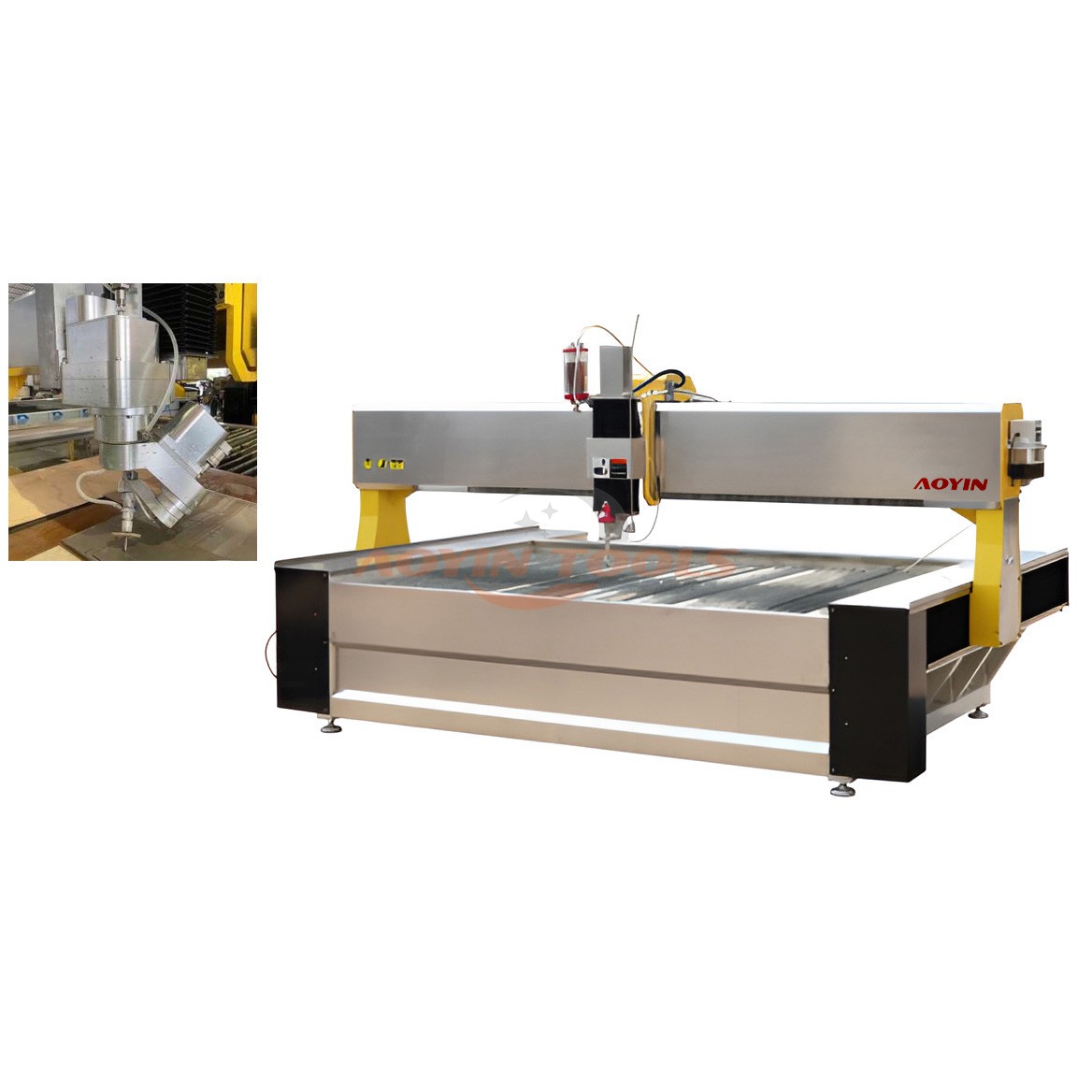

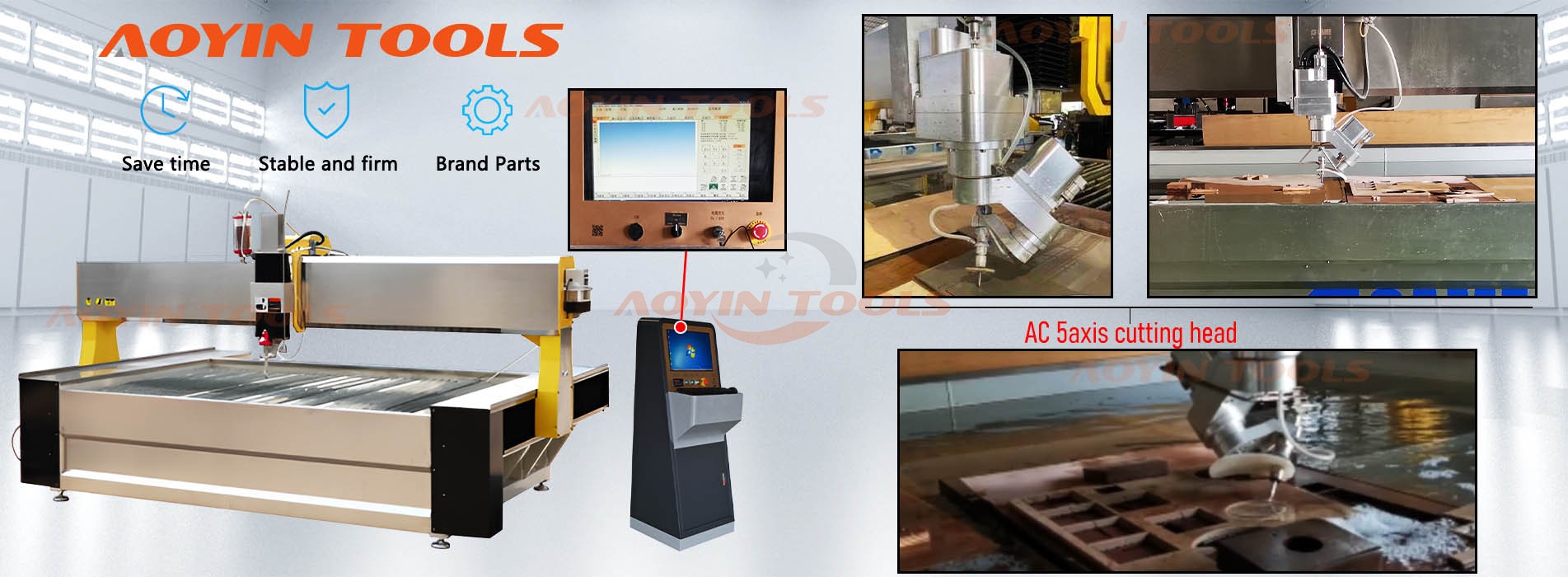

2)Gantry Type Cutting Table and AC 5axis cutting head

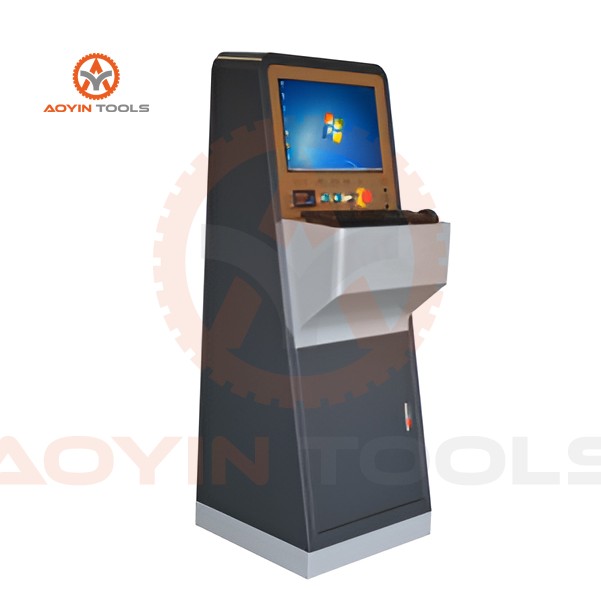

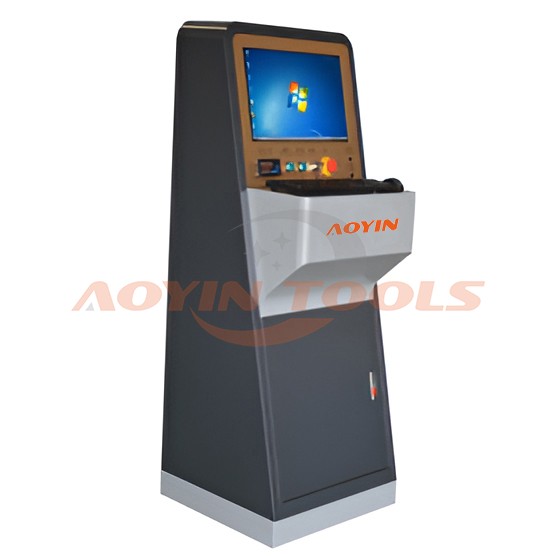

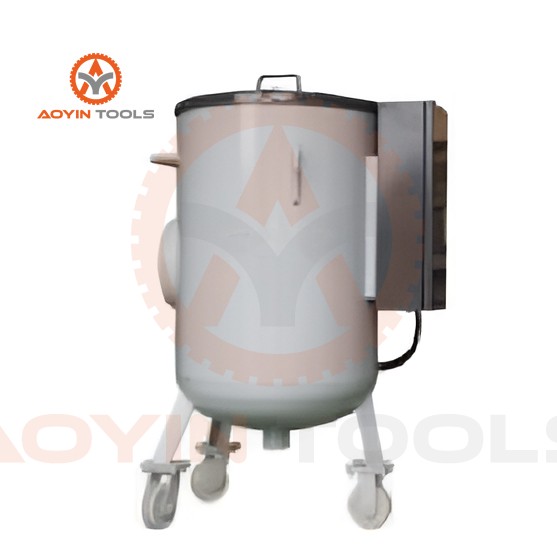

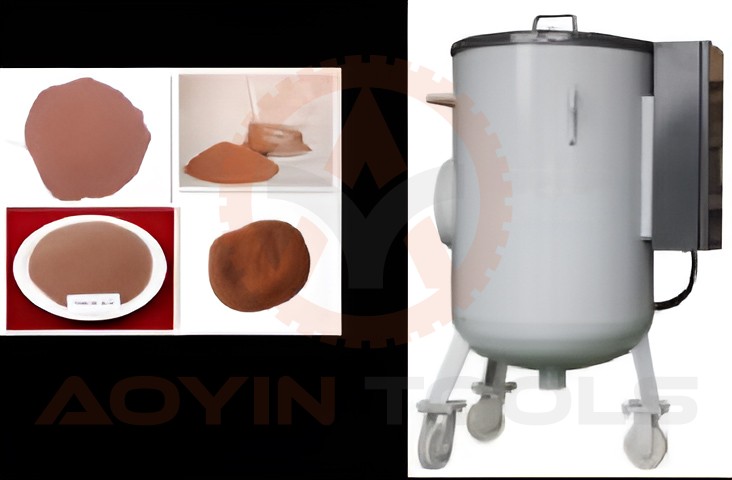

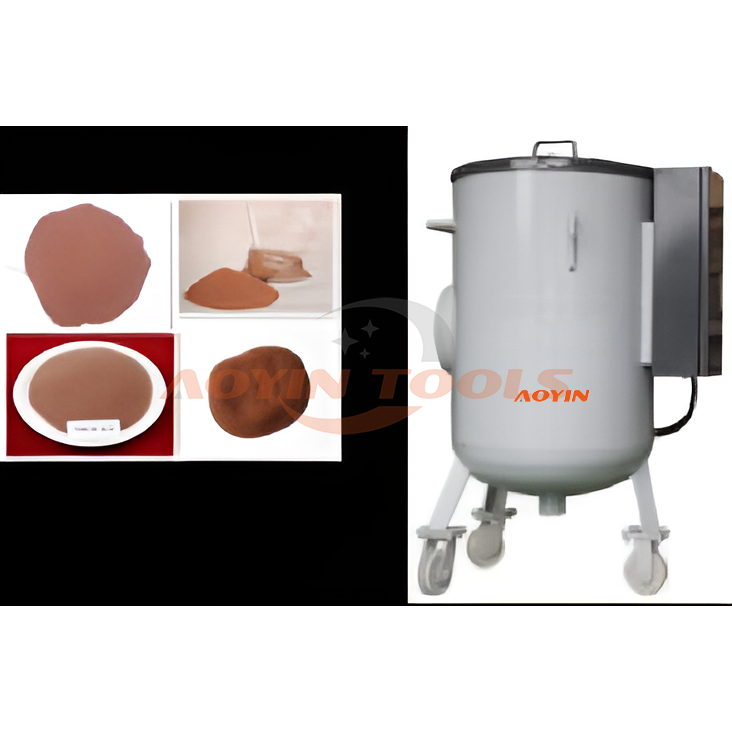

Type | 3020 |
Dimension(mm) | 3900*3050 |
Max.cutting range(mm) | 3000*2000 |
Travel of Z axis | 150mm |
Control accuracy | ±0.01mm |
Cutting accuracy | ±0.1mm |
Re-positioning accuracy | ±0.025mm/m |
Max. moving speed | 10000mm/min |
A axis rotation angle | ±67° |
C axis rotation angle | ±360° |
Bevel cutting angle | ±45° |
Dimension (L*W*H) | 600mm*550mm*1200mm |
Weight | 200Kg |
Power supply | AC 220V 50/60Hz |
Professional Water jet software | NC Studio |
Servo Driver | YASKAWA , Japan/WEIHONG |
Dimension(L*W*H) | 600mm*600mm*1400mm |
Weight | 80Kg |
Max.capacity | 200Kg |
Max. air pressure supply | 0.2Mpa |
Voltage | 24V |
Power rate | 30W |
