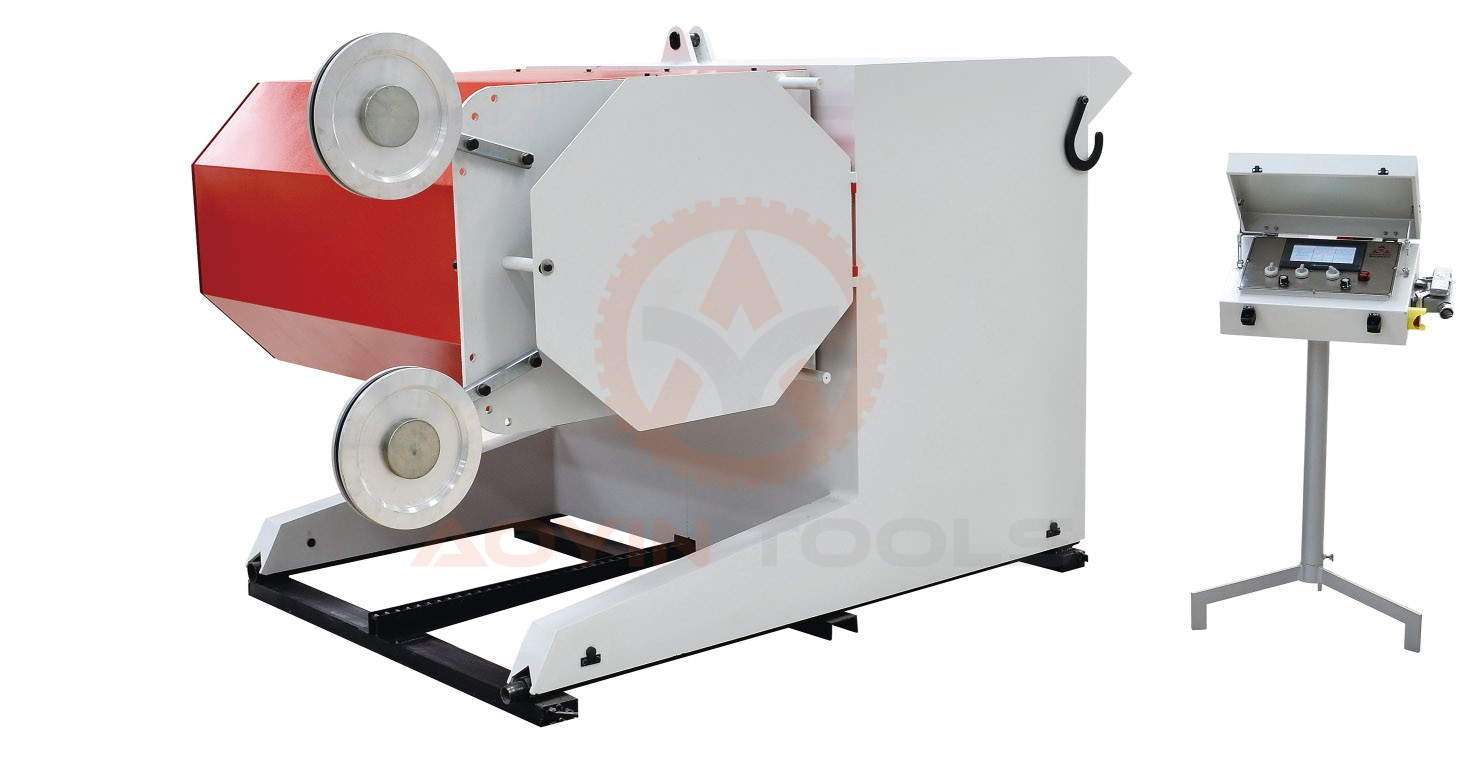

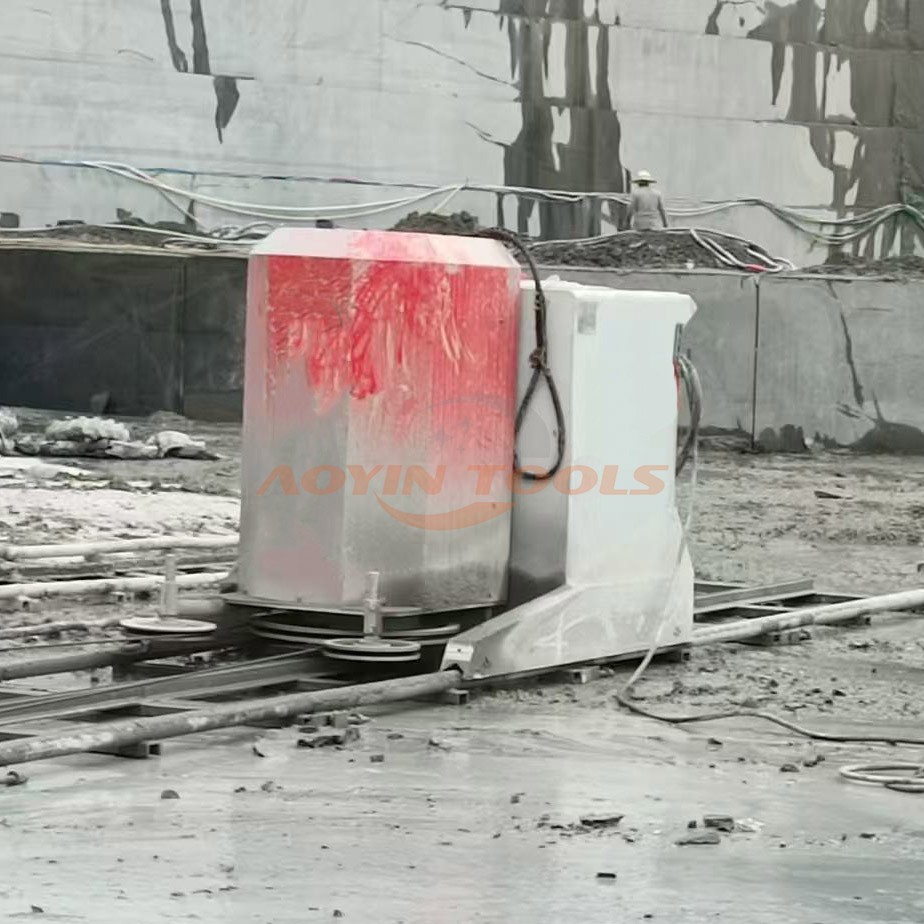

The MWS-37/45/55/75 diamond wire saw machine is a cutting-edge equipment used in mining. It eliminates the requirement for power phase and can be operated manually or automatically, allowing for unmanned control or the control of multiple machines by a single person.
Color :
CustomizedShipping Port :
Xiamen PortLead Time :
7-35 days after paymentCustomized support :
Visualization ServiceBrand Name :
OEMMWS-37/45/55/75 Diamond Wire Saw Machine
Product Details:

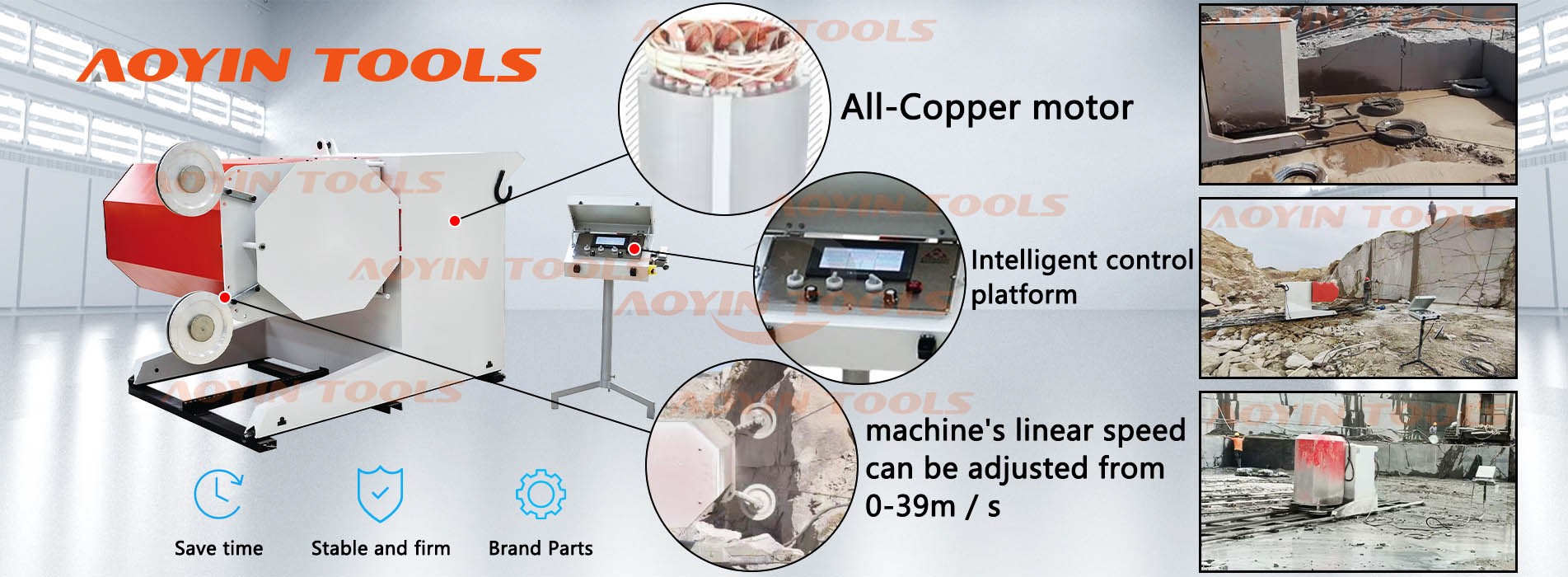

Combined with dual-conversion and PLC technology, this machine achieves constant tension cutting based on the set data, enhancing efficiency. The operation panel displays electric current, speed, working time, and other parameters, making adjustment easier and more precise. Moreover, the machine is equipped with protective functions for broken cables, overload phase, and limit switches.
Product Specifications:
- Model: MWS-37/45/55/75
| Techical Parameter | |||||
| Model | Unit | MWS-37 | MWS-45 | MWS-55 | MWS-75 |
| Main Motor Power | kw | 37 | 45 | 55 | 75 |
| Flywheel's Diameter | mm | Φ800 | Φ800 | Φ800 | Φ800 |
| Guide pulley’s diameter | mm | Φ350 | Φ350 | Φ350 | Φ350 |
| Wire Linear Speed | m/s | 0~40 | 0~40 | 0~40 | 0~40 |
| Adjustment Distance | mm | 400 | 450 | ||
| Rotation Angle | n。 | 360° Electric | |||
| Feeding Speed | m/h | 0~50 | 0~50 | ||
| Max.Wire Length | m | 80 | 100 | 120 | 150 |
| Dimensions(LxWxH) | mm | 2110x1200x1430 | 2440x1480x1520 | ||
| Net weight | kg | 1900 | 2000 | 2800 | 3200 |
Product Highlights:
- No power phase requirements
- Manual or automatic switching
- Unmanned control or one person controlling multiple machines
- Constant tension cutting for improved efficiency
- Operation panel for easy and precise adjustment
- Protect functions for broken cables, overload phase, and limit switches
Applications:

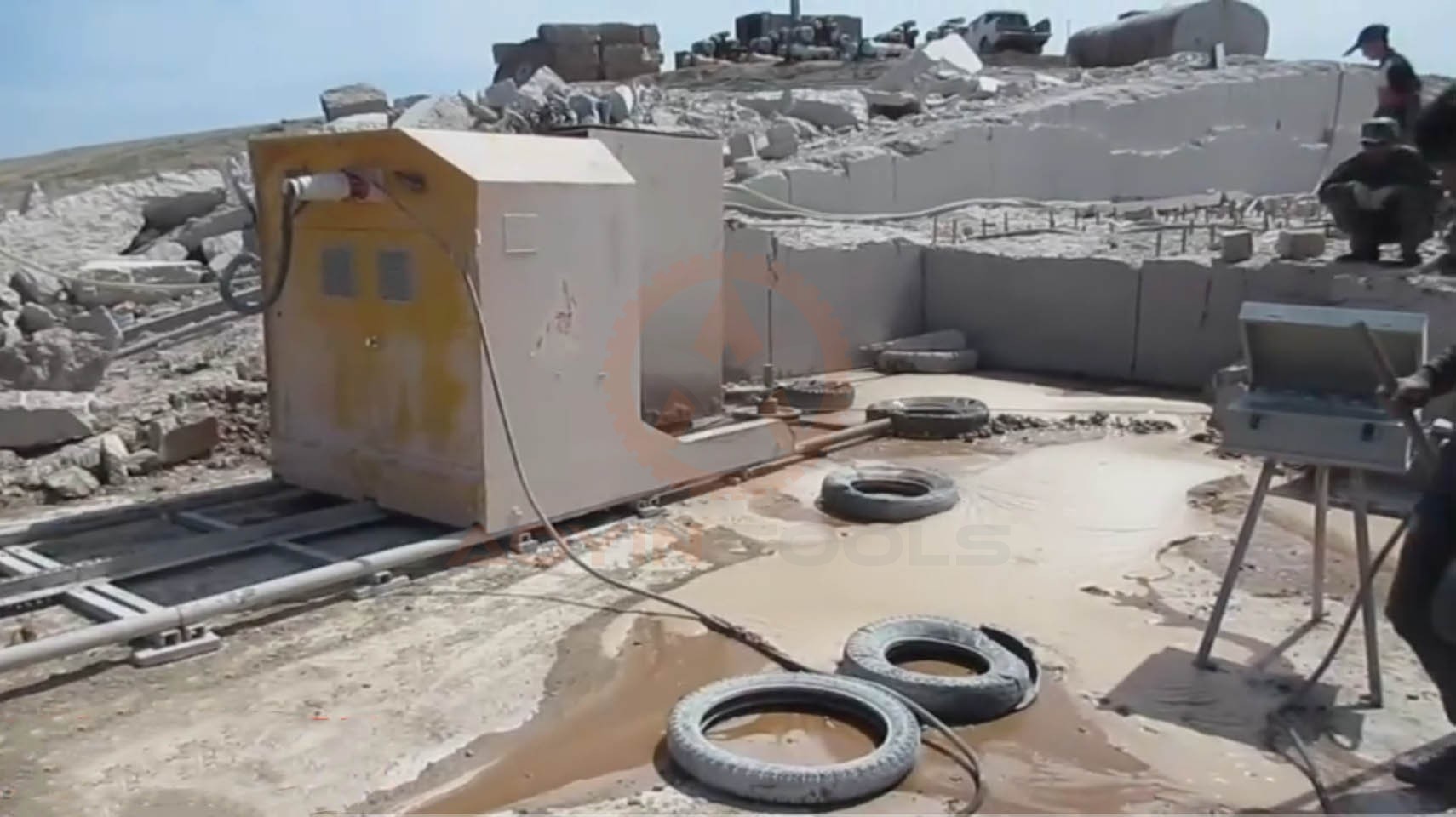

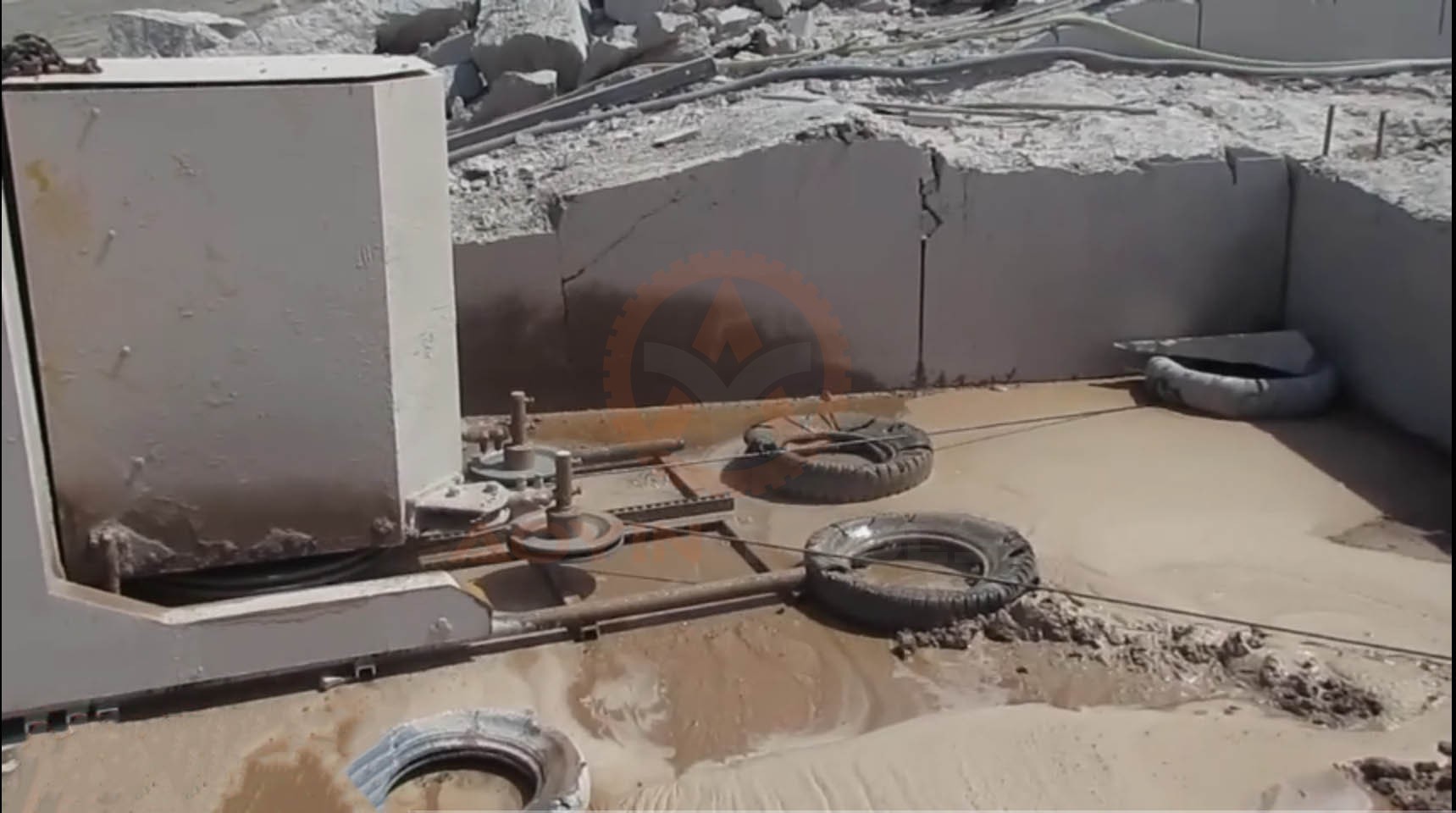

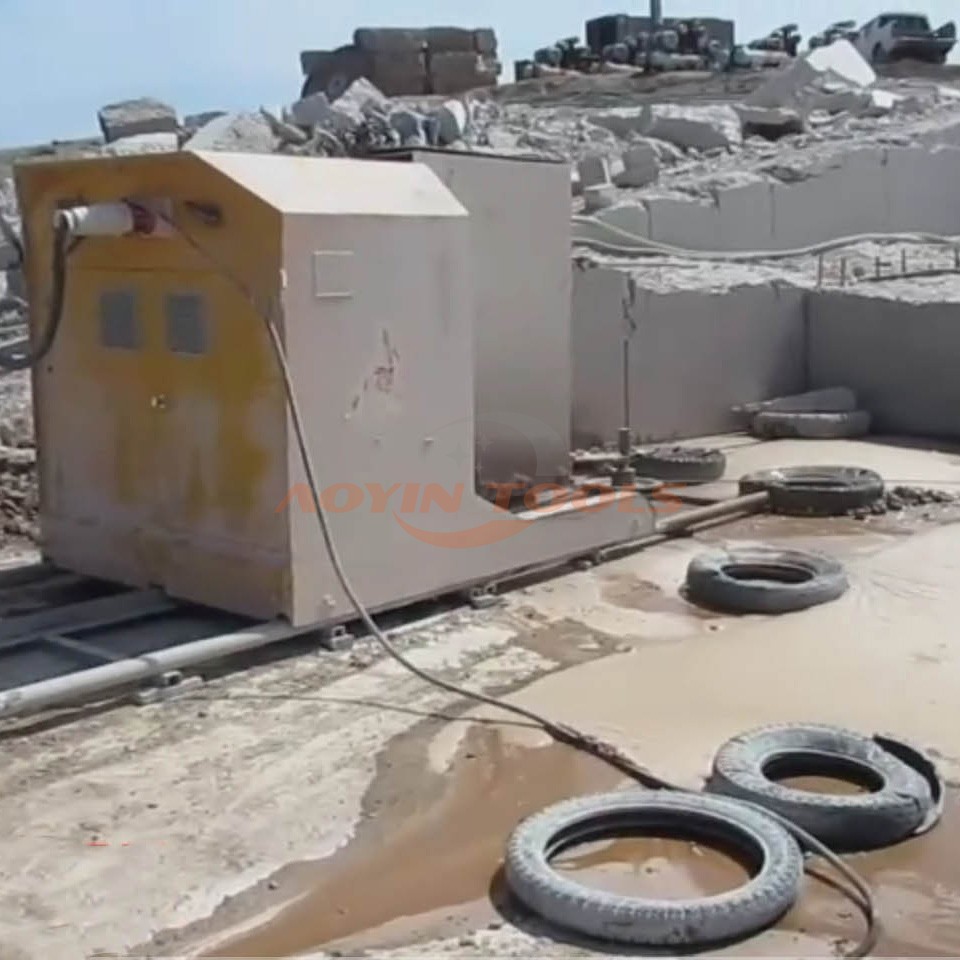

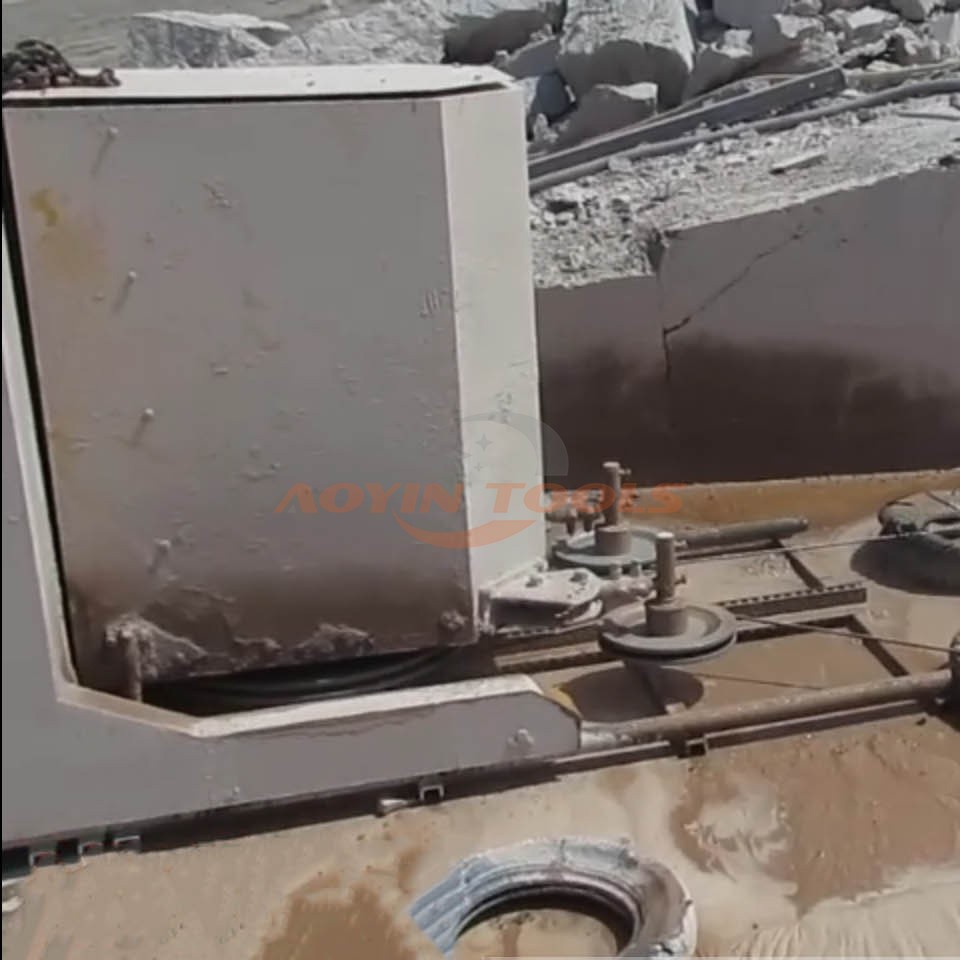

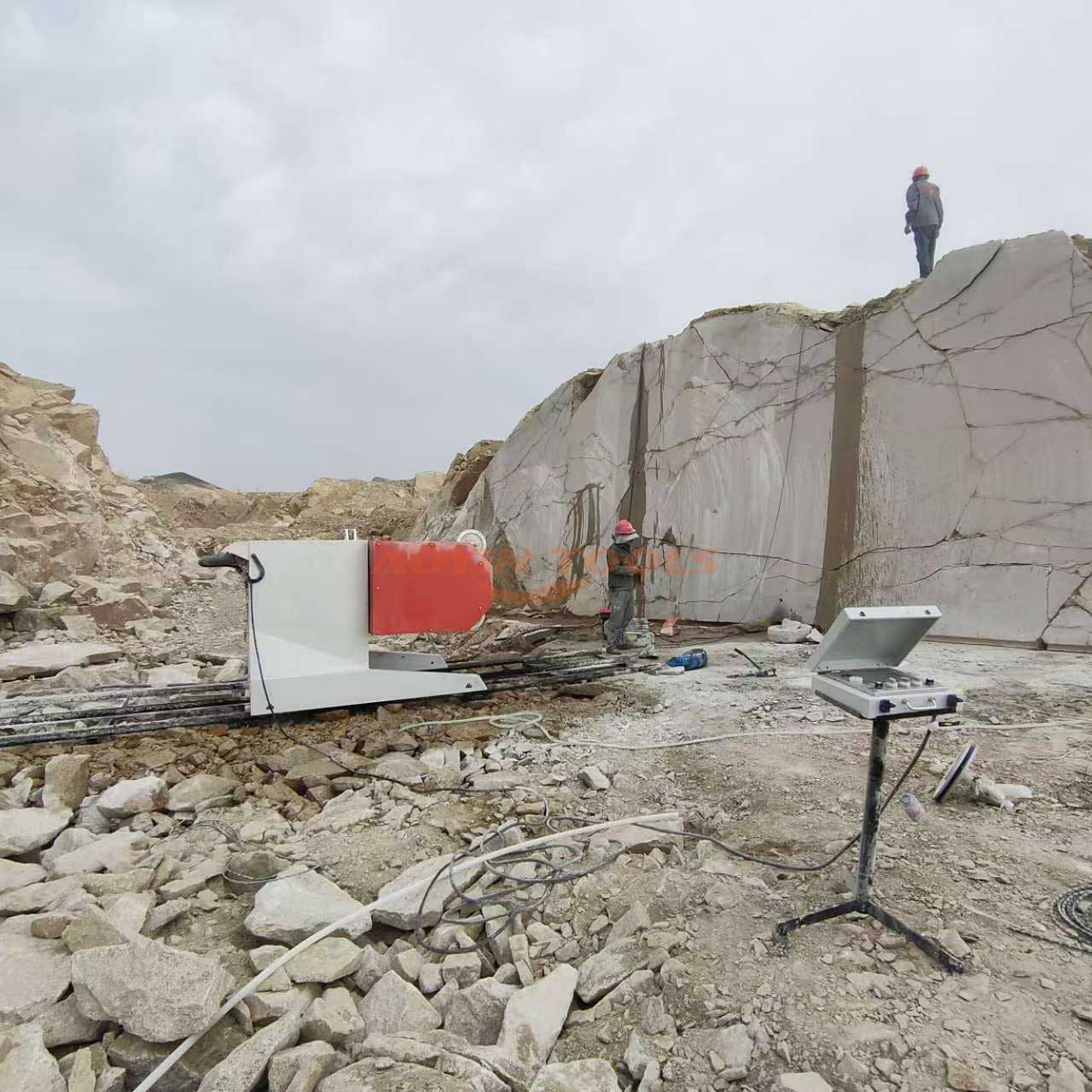

The MWS-37/45/55/75 Diamond Wire Saw Machine is suitable for various mining applications that require efficient cutting. It can be used in quarries, mines, and other mining operations.
Company Service Advantages:
Our company is dedicated to providing excellent customer service and support. We offer timely assistance, comprehensive training, and maintenance services to ensure that our customers can maximize the benefits of our products. We pride ourselves on our reliable and efficient services.
FAQ (Frequently Asked Questions):
1. What are the power requirements for the MWS-37/45/55/75 Diamond Wire Saw Machine?
The MWS-37/45/55/75 Diamond Wire Saw Machine does not have any specific power phase requirements. It can be used with any standard power supply.
2. Can the machine be operated remotely?
Yes, the machine can be operated remotely. It has a switching function that allows for unmanned control, or one person can control multiple machines simultaneously.
3. How does the constant tension cutting feature work?
The constant tension cutting feature is achieved through the use of dual-conversion and PLC technology. It ensures that the wire saw maintains a constant tension during the cutting process, resulting in improved efficiency and accuracy.
4. What information does the operation panel display?
The operation panel displays various parameters, including electric current, speed, and working time. This information is helpful for adjusting and monitoring the machine's performance.
5. How does the machine protect against broken cables or overloads?
The MWS-37/45/55/75 Diamond Wire Saw Machine is equipped with protective functions for broken cables, overload phases, and limit switches. These features help prevent accidents and ensure the safety of the operator and the machine.
6. What are the application areas for this machine?
The MWS-37/45/55/75 Diamond Wire Saw Machine is widely used in mining operations such as quarries, mines, and excavation sites. It is particularly useful for cutting through hard materials like stone, marble, and granite.
